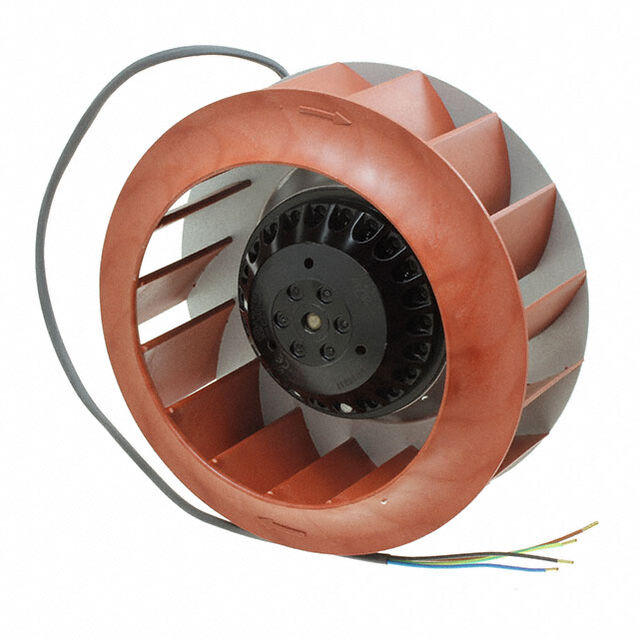

R2E180-AS77-40

Active

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 230V 180 X 86.5MM

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC FAN AXIAL BALL BEARING 230V 180 X 86.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	R2E180-AS77-40

Approval Agency	UL, CSA, CE
Bearing Type	Ball
Current Rating (Amps)	0.47 A
Fan Type	Motorized Impellers
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Polyamide (PA66), Nylon 6/6
Operating Temperature	55 °C
Operating Temperature	131 °F
Power (Watts)	100 W
RPM	2300 RPM
Size / Dimension [diameter]	180 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width [y]	84.5 mm

Part	Material - Blade	Ingress Protection	Power (Watts)	Size / Dimension [diameter]	Approval Agency	Termination	Voltage - Rated	Bearing Type	Fan Type	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	RPM	Width [y]	Operating Temperature	Operating Temperature	Voltage Range [Min]	Voltage Range [Max]
ebm-papst Inc. R2E180-AS77-05	Nylon Polyamide (PA)	IP44	100 W	180 mm	CE EAC	4 Wire Leads with Splice Terminals	230 VAC	Ball	Motorized Impellers	Capacitor Thermal Overload Protector (TOP)	450 mA	-25 °C	-25 °C	35 °C	35 °C	2300 RPM	84.5 mm
ebm-papst Inc. R2E180-AT06-15	Polyamide (PA6) Nylon 6	IP44	145 W	180 mm	CE CSA UL	4 Wire Leads with Splice Terminals	230 VAC	Ball	Motorized Impellers	Capacitor Thermal Overload Protector (TOP)	610 mA					2800 RPM	95 mm	60 °C	60 °C
ebm-papst Inc. R2E180-AT38-10	Nylon Polyamide (PA)	IP44		180 mm	CE EAC	3 Wire Leads with Splice Terminals	240 VAC	Ball	Motorized Impellers	Capacitor	360 mA	-25 °C	-25 °C	40 °C	40 °C	2400 RPM	84.5 mm			220 VAC	240 VAC
ebm-papst Inc. R2E180-AU01-10	Steel			180 mm		3 Wire Leads with QC Receptacles	230 VAC	Ball	Motorized Impellers	Capacitor Thermal Overload Protector (TOP)	0.38 A					2400 RPM	158 mm	100 °C	212 °F
ebm-papst Inc. R2E180-AS77-40	Polyamide (PA66) Nylon 6/6	IP44	100 W	180 mm	CE CSA UL	4 Wire Leads with Splice Terminals	230 VAC	Ball	Motorized Impellers	Capacitor Thermal Overload Protector (TOP)	0.47 A					2300 RPM	84.5 mm	55 °C	131 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 230VAC Round - 180mm Dia Ball 4 Wire Leads with Splice Terminals
