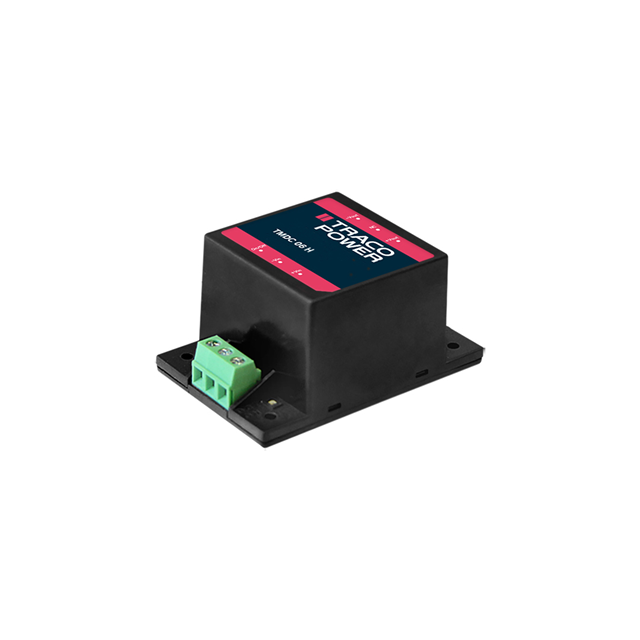

TMDC 06-7225H

Active

Traco Power

DC/DC CONVERTER +/-24V 6W

Search across all available documentation for this part.

Active

Traco Power

DC/DC CONVERTER +/-24V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Current - Output (Max) [Max]	Voltage - Output 1	Power (Watts)	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Mounting Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Traco Power TMDC 06-7212H	Enclosed	500 mA	12 V	6 W	ITE (Commercial)	1.04 in	26.5 mm	34 mm	53 mm	1.34 in	2.09 in	CB CE cURus	Chassis Mount	83 %	-40 °C	93 °C	3000 V	160 V	1	80 V
Traco Power TMDC 06-7223H	Enclosed		15 V	6 W	ITE (Commercial)	1.04 in	26.5 mm	34 mm	53 mm	1.34 in	2.09 in	CB CE cURus	Chassis Mount	84 %	-40 °C	93 °C	3000 V	160 V	2	80 V	-15 V
Traco Power TMDC 06-7215H	Enclosed	250 mA	24 V	6 W	ITE (Commercial)	1.04 in	26.5 mm	34 mm	53 mm	1.34 in	2.09 in	CB CE cURus	Chassis Mount	84 %	-40 °C	93 °C	3000 V	160 V	1	80 V
Traco Power TMDC 06-7225H	Enclosed		24 V	6 W	ITE (Commercial)	1.04 in	26.5 mm	34 mm	53 mm	1.34 in	2.09 in	CB CE cURus	Chassis Mount	83 %	-40 °C	93 °C	3000 V	160 V	2	80 V	-24 V	125 mA	125 mA
Traco Power TMDC 06-2425	Enclosed		24 V	6 W	ITE (Commercial)	1.04 in	26.5 mm	34 mm	53 mm	1.34 in	2.09 in	CB CE cURus	Chassis Mount	84 %	-40 °C	92.5 °C	3000 V	36 V	2	9 V	-24 V	125 mA	125 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 2 Output 24V -24V 125mA, 125mA 160V Input
