Q-0601C000S1.5M

Active

Amphenol Custom Cable

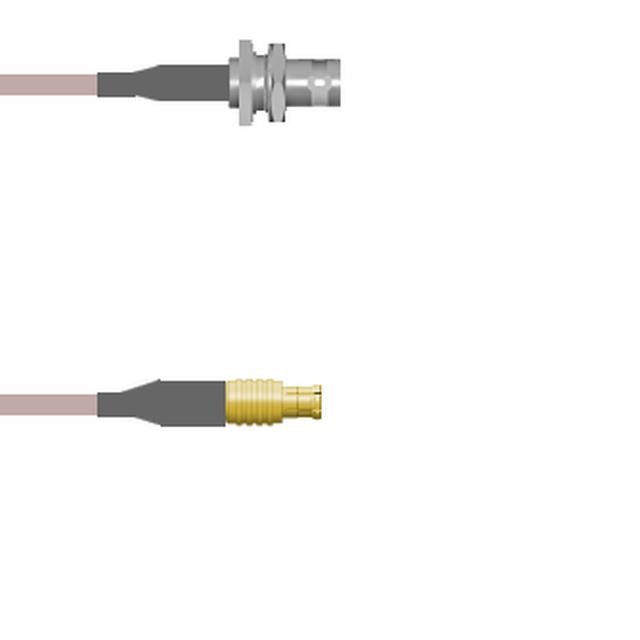

CBL ASSY BNC-MCX JACK-PLUG 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0601C000S1.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-PLUG 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0601C000S1.5M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-179
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	75 Ohms
Style	BNC to MCX

Q-0601C0 Series

Part	Length	Length	2nd Connector Mounting Type	Style	2nd Contact Gender	Frequency - Max [Max]	1st Connector Mounting Type	Cable Type	1st Connector	1st Connector Mounting Feature	Color	Features	1st Contact Gender	Overall Impedance	2nd Connector	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-0601C000S006i	152.4 mm	6 in	Free Hanging (In-Line)	BNC to MCX	Male	4 GHz	Panel Mount	RG-179	BNC Jack	Bulkhead - Front Side Nut	Copper	Shielded	Female	75 Ohms	MCX Plug
Amphenol Custom Cable Q-0601C000S.25M			Free Hanging (In-Line)	BNC to MCX	Male	4 GHz	Panel Mount	RG-179	BNC Jack	Bulkhead - Front Side Nut	Copper	Shielded	Female	75 Ohms	MCX Plug	9.843 "	250 mm
Amphenol Custom Cable Q-0601C000S012i	304.8 mm	12 "	Free Hanging (In-Line)	BNC to MCX	Male	4 GHz	Panel Mount	RG-179	BNC Jack	Bulkhead - Front Side Nut	Copper	Shielded	Female	75 Ohms	MCX Plug
Amphenol Custom Cable Q-0601C000S009i	228.6 mm	9 "	Free Hanging (In-Line)	BNC to MCX	Male	4 GHz	Panel Mount	RG-179	BNC Jack	Bulkhead - Front Side Nut	Copper	Shielded	Female	75 Ohms	MCX Plug
Amphenol Custom Cable Q-0601C000S003i	76.2 mm	3 in	Free Hanging (In-Line)	BNC to MCX	Male	4 GHz	Panel Mount	RG-179	BNC Jack	Bulkhead - Front Side Nut	Copper	Shielded	Female	75 Ohms	MCX Plug
Amphenol Custom Cable Q-0601C000S060i	1.5 m	5 '	Free Hanging (In-Line)	BNC to MCX	Male	4 GHz	Panel Mount	RG-179	BNC Jack	Bulkhead - Front Side Nut	Copper	Shielded	Female	75 Ohms	MCX Plug			5 ft
Amphenol Custom Cable Q-0601C000S1.5M	1.5 m	59.1 in	Free Hanging (In-Line)	BNC to MCX	Male	4 GHz	Panel Mount	RG-179	BNC Jack	Bulkhead - Front Side Nut	Copper	Shielded	Female	75 Ohms	MCX Plug			4.9 ft
Amphenol Custom Cable Q-0601C000S084i	2.1 m	84 in	Free Hanging (In-Line)	BNC to MCX	Male	4 GHz	Panel Mount	RG-179	BNC Jack	Bulkhead - Front Side Nut	Copper	Shielded	Female	75 Ohms	MCX Plug			7 ft
Amphenol Custom Cable Q-0601C000S2.5M	2.5 m	98.4 in	Free Hanging (In-Line)	BNC to MCX	Male	4 GHz	Panel Mount	RG-179	BNC Jack	Bulkhead - Front Side Nut	Copper	Shielded	Female	75 Ohms	MCX Plug			8.2 '
Amphenol Custom Cable Q-0601C000S072i	1.8 m	72 in	Free Hanging (In-Line)	BNC to MCX	Male	4 GHz	Panel Mount	RG-179	BNC Jack	Bulkhead - Front Side Nut	Copper	Shielded	Female	75 Ohms	MCX Plug			6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 70.77
		25	$ 65.92
		50	$ 61.07
		100	$ 56.92
		250	$ 53.45

Description

General part information

Q-0601C0 Series

Cable Assembly Coaxial BNC to MCX RG-179 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
