BEC3P75H25-T

Obsolete

Panduit Corp

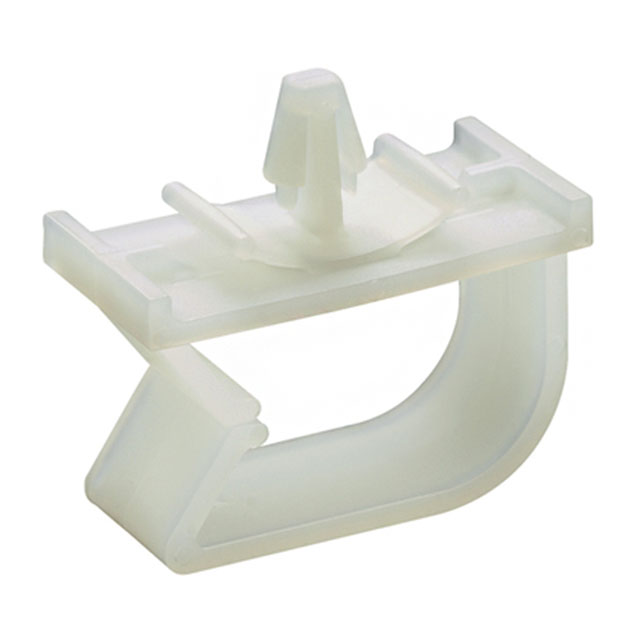

CBL CLIP WIRE SADDLE NAT ARROW

Search across all available documentation for this part.

Obsolete

Panduit Corp

CBL CLIP WIRE SADDLE NAT ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	BEC3P75H25-T

Color	Natural
Length	37.59 mm
Length	1.48 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size	19.05 mm
Opening Size [z]	0.75 in
Panel Hole Size	6.35 mm
Panel Hole Size	0.25 in
Panel Thickness	3 mm
Panel Thickness	0.118 in
Type	Clip, Wire Saddle
Type Attributes	Side Entry
Width	0.74 in
Width	18.8 mm

Part	Color	Material Flammability Rating	Panel Hole Size	Panel Hole Size	Opening Size [z]	Opening Size	Panel Thickness	Panel Thickness	Width	Width	Type Attributes	Material	Length	Length	Mounting Type	Type
Panduit Corp BEC3P75H25-T	Natural	UL94 V-2	6.35 mm	0.25 in	0.75 in	19.05 mm	3 mm	0.118 in	0.74 in	18.8 mm	Side Entry	Polyamide (PA66) Nylon 6/6	37.59 mm	1.48 in	Arrowhead Winged	Clip Wire Saddle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.750" (19.05mm)

Technical documentation and resources
