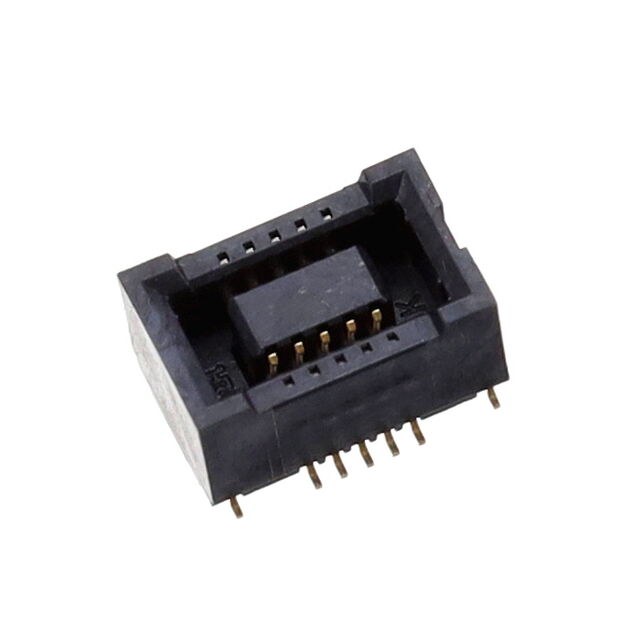

DF40HB(2.5)-10DS-0.4V(51)
ActiveHirose Electric USA, Inc.
CONN RCPT 10POS 0.4MM SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DF40HB(2.5)-10DS-0.4V(51)
ActiveHirose Electric USA, Inc.
CONN RCPT 10POS 0.4MM SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF40HB(2.5)-10DS-0.4V(51) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.094 " |
| Height Above Board | 2.4 mm |
| Mated Stacking Heights | 2.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.26 | |
| 10 | $ 1.06 | |||
| 25 | $ 1.02 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.87 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.26 | ||
| 10 | $ 1.06 | |||
| 25 | $ 1.02 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.87 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.69 | |||
| Tape & Reel (TR) | 3000 | $ 0.63 | ||
| 6000 | $ 0.61 | |||
| 9000 | $ 0.58 | |||
| 15000 | $ 0.56 | |||
Description
General part information
DF40HB Series
10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
