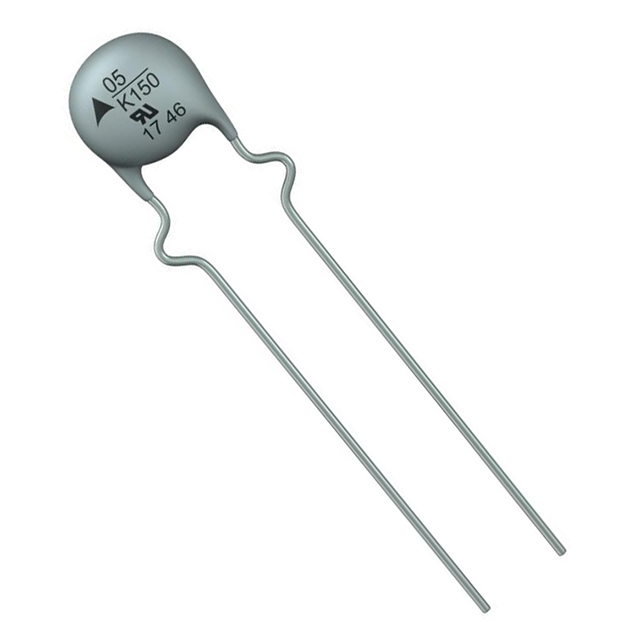

B72205U2271K501
ActiveEPCOS - TDK Electronics
VARISTOR 430V 800A DISC 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B72205U2271K501
ActiveEPCOS - TDK Electronics
VARISTOR 430V 800A DISC 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B72205U2271K501 |
|---|---|
| Capacitance @ Frequency | 60 pF |
| Current - Surge | 800 A |
| Energy | 13.5 J |
| Maximum AC Volts [Max] | 275 V |
| Maximum DC Volts [Max] | 350 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Disc |
| Package / Case | 5 mm |
| Varistor Voltage (Max) [Max] | 473 V |
| Varistor Voltage (Min) [Min] | 387 V |
| Varistor Voltage (Typ) | 430 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.44 | |
| 10 | $ 0.35 | |||
| 25 | $ 0.33 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.12 | |||
| 5000 | $ 0.12 | |||
Description
General part information
B72205U Series
430 V 800 A Varistor 1 Circuit Through Hole Disc 5mm
