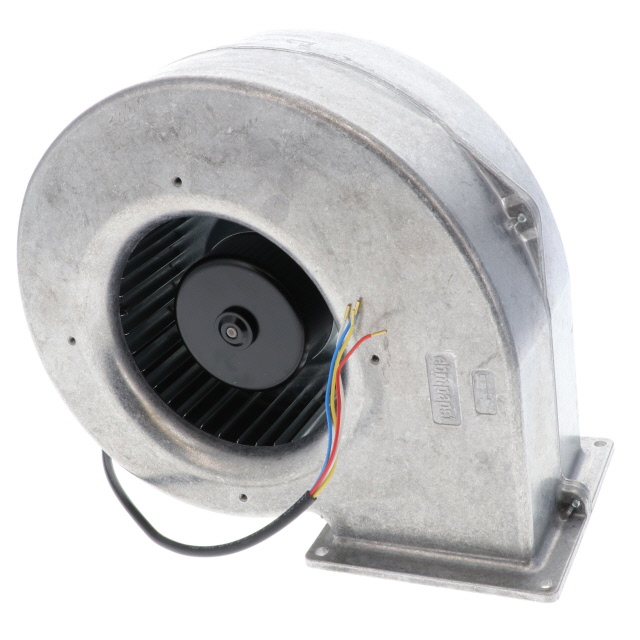

G1G140-AV17-02

Active

ebm-papst Inc.

FAN BLOWER 226.3X130.0MM 24VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER 226.3X130.0MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	G1G140-AV17-02

Approval Agency	EAC
Bearing Type	Ball
Current Rating (Amps)	2.5 A
Fan Type	Blower
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP22
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	54 W
RPM	1750 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	226.3 mm
Size / Dimension [z]	261.5 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	16 VDC
Width [y]	130 mm

Part	Ingress Protection	Fan Type	Material - Frame	Features	Voltage - Rated	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Bearing Type	RPM	Voltage Range [Min]	Voltage Range [Max]	Termination	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Material - Blade	Approval Agency	Width [y]
ebm-papst Inc. G1G140-AV17-02	IP22	Blower	Aluminum	PWM Control Speed Sensor (Tach)	24 VDC	2.5 A	-25 °C	60 °C	54 W	Ball	1750 RPM	16 VDC	28 VDC	4 Wire Leads with Splice Terminals	Rectangular/Rounded	261.5 mm	226.3 mm	Steel	EAC	130 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Rectangular/Rounded - 226.3mm L x 261.5mm H Ball 4 Wire Leads with Splice Terminals
