EVB_RT4539WSC

Active

Richtek USA Inc.

EVAL BOARD FOR RT4539

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL BOARD FOR RT4539

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input [Min]	Voltage - Input [Max]	Features	Voltage - Output	Utilized IC / Part	Outputs and Type	Supplied Contents	Current - Output / Channel	Package / Case	Voltage - Output [Max]	Voltage - Output [Min]	Number of Outputs	Frequency [Max]	Frequency [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Dimming	Type	Supplier Device Package	Mounting Type	Voltage - Supply (Max) [Max]	Internal Switch(s)	Topology
Richtek USA Inc. EVB_RT4539WSC	2.7 V	24 V	Dimmable	36 V	RT4539	6 Outputs	Board(s)	35 mA
Richtek USA Inc. RT4539WSC								35 mA	20-UFBGA WLCSP	36 V	2.7 V	6	1.6 MHz	300 kHz	85 °C	-40 °C	Backlight	Analog I2C PWM	DC DC Regulator	20-WLCSP (1.71x2.37)	Surface Mount	24 V		Step-Up (Boost)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 68.75

General part information

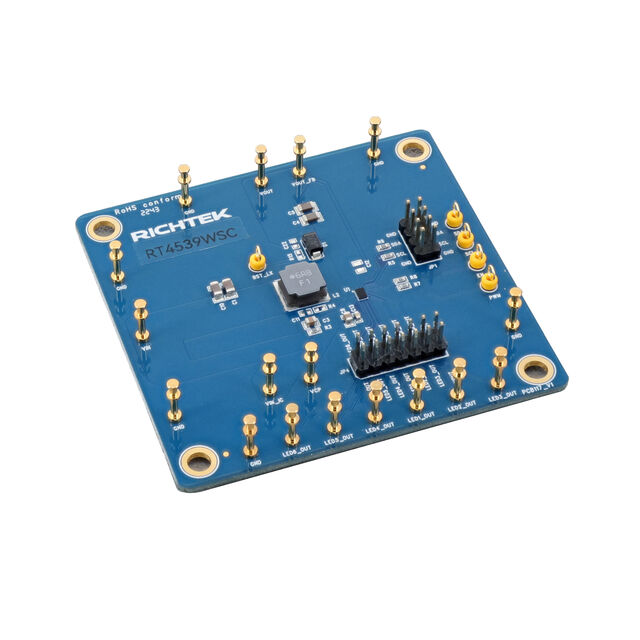

RT4539 - 6 Non-Isolated Outputs Dimmable LED Driver Evaluation Board

Technical documentation and resources
