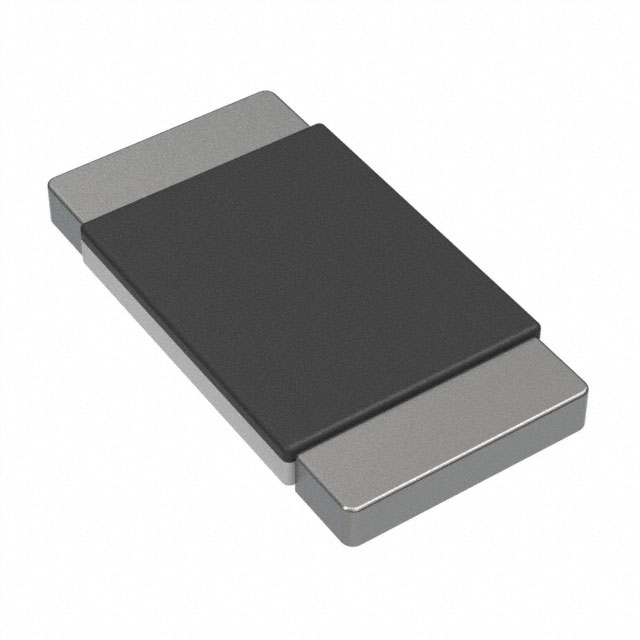

SCMM2512S2-R008F

Obsolete

Delta Electronics/Cyntec

RES 0.008 OHM 1% 2W 2512

Search across all available documentation for this part.

Obsolete

Delta Electronics/Cyntec

RES 0.008 OHM 1% 2W 2512

Technical Specifications

Parameters and characteristics for this part

Specification	SCMM2512S2-R008F

Composition	Metal Film
Features	Current Sense, Pulse Withstanding
Height - Seated (Max) [Max] [z]	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-65 ░C
Package / Case	6432 Metric
Package / Case	2512
Power (Watts)	2 W
Resistance	8 mOhms
Size / Dimension	6.35 mm, 3.2 mm
Size / Dimension [x]	0.25 "
Size / Dimension [y]	0.126 "
Supplier Device Package	2512
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

Part	Temperature Coefficient	Power (Watts)	Number of Terminations	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Features	Package / Case	Package / Case	Composition	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance
Delta Electronics/Cyntec SCMM2512S20M50FW	75 ppm/°C	2 W	2	0.25 "	3.2 mm 6.35 mm	0.126 "	0.5 mOhms	170 °C	-65 ░C	Current Sense Pulse Withstanding	6432 Metric	2512	Metal Film	2512	0.85 mm	0.033 "	1 %
Delta Electronics/Cyntec SCMM2512S2-R008F	50 ppm/°C	2 W	2	0.25 "	3.2 mm 6.35 mm	0.126 "	8 mOhms	170 °C	-65 ░C	Current Sense Pulse Withstanding	6432 Metric	2512	Metal Film	2512	0.85 mm	0.033 "	1 %
Delta Electronics/Cyntec SCMM2512S2-R001F	50 ppm/°C	2 W	2	0.25 "	3.2 mm 6.35 mm	0.126 "	1 mOhms	170 °C	-65 ░C	Current Sense Pulse Withstanding	6432 Metric	2512	Metal Film	2512	0.85 mm	0.033 "	1 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Current Sense, Pulse Withstanding Metal Film

Technical documentation and resources

No documents available
