CP076581-238

Active

CUI Devices

PELTIER, 6.5 X 8.1 X 2.38 MM, 0.

Search across all available documentation for this part.

Active

CUI Devices

PELTIER, 6.5 X 8.1 X 2.38 MM, 0.

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Operating Temperature	Features	Resistance	Qmax @ Th	Voltage - Max [Max]	Delta Tmax @ Th	Height [z]
CUI Devices CP076581-238P	8.1 mm	6.5 mm	0.7 A	150 °C	Lead Wires Non-Sealed	4.17 Ohms	1.7 W	3.9 V	70 °C	2.77 mm
CUI Devices CP076581-238	8.1 mm	6.5 mm	0.7 A	150 °C	Lead Wires Non-Sealed	4.17 Ohms	1.7 W	3.9 V	70 °C	2.38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

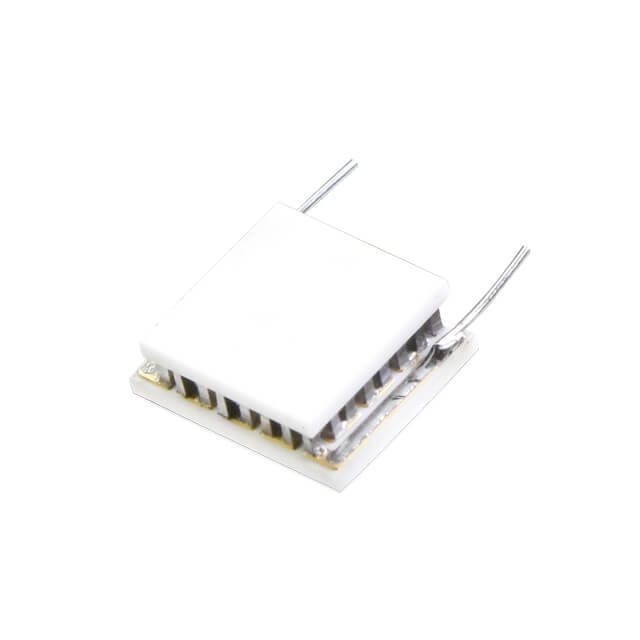

Peltier Module 1.7W @ 27°C 0.7 A 150°C

Technical documentation and resources
