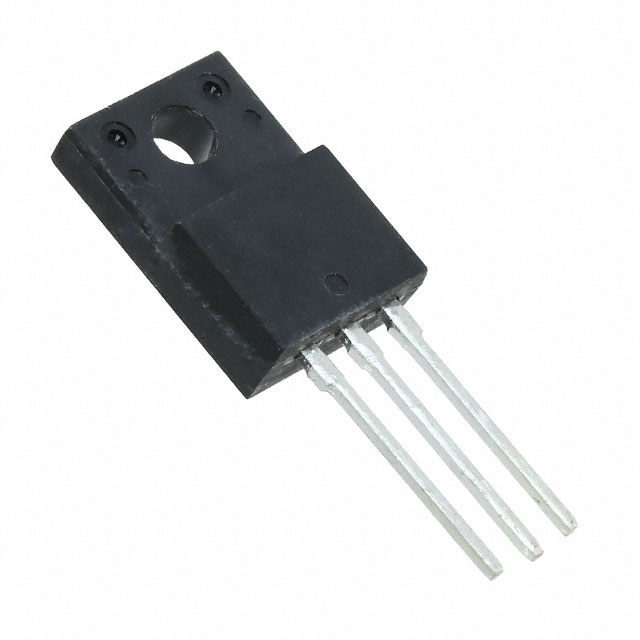

2SA2007E

Rohm Semiconductor

TRANS PNP 60V 12A TO220FN

Search across all available documentation for this part.

Rohm Semiconductor

TRANS PNP 60V 12A TO220FN

Technical Specifications

Parameters and characteristics for this part

Specification	2SA2007E

Current - Collector (Ic) (Max) [Max]	12 A
Current - Collector Cutoff (Max) [Max]	10 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	320
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-220-3 Full Pack
Power - Max [Max]	25 W
Supplier Device Package	TO-220FN
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Package / Case	Operating Temperature	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Supplier Device Package	Current - Collector (Ic) (Max) [Max]
Rohm Semiconductor 2SA2007E	10 µA	60 V	TO-220-3 Full Pack	150 °C	Through Hole	320	25 W	500 mV	PNP	TO-220FN	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 60 V 12 A 80MHz 25 W Through Hole TO-220FN
