TDA8945S/N1,112

Obsolete

Freescale Semiconductor - NXP

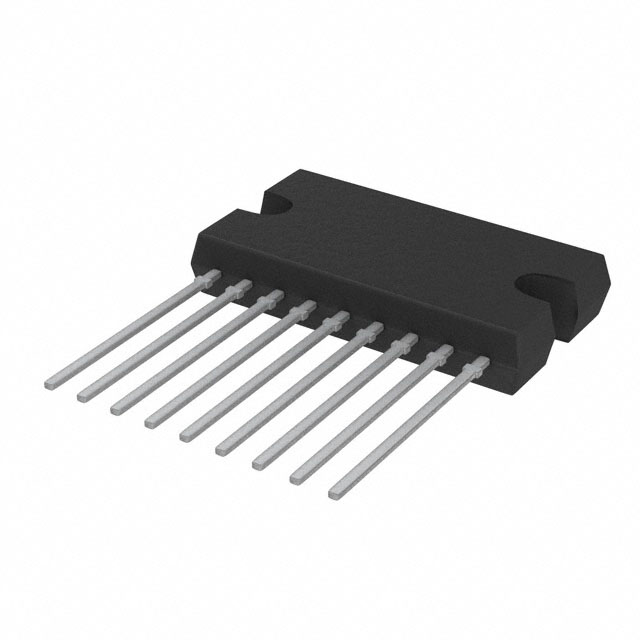

IC AMP CLASS AB MONO 15W 9SIL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TDA8945S/N1,112

Obsolete

Freescale Semiconductor - NXP

IC AMP CLASS AB MONO 15W 9SIL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TDA8945S/N1,112

Features	Mute, Short-Circuit and Thermal Protection, Depop, Standby
Max Output Power x Channels @ Load	1, 15 W
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Type	1-Channel (Mono)
Package / Case	9-SIP
Supplier Device Package	9-PSIL
Type	Class AB
Voltage - Supply [Max]	25 V
Voltage - Supply [Min]	6 V

TDA894 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Max Output Power x Channels @ Load	Features	Output Type	Package / Case	Supplier Device Package	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load [custom]	Package / Case	Package / Case
Freescale Semiconductor - NXP TDA8948J/N1,112	85 °C	-40 °C	Through Hole	26 V	9 V	Class AB	12 W 24 W	Mute Short-Circuit and Thermal Protection Standby	2-Channel (Stereo) 4-Channel (Quad)	17-SIP Formed Leads	DBS17P
Freescale Semiconductor - NXP TDA8944J/N1,112	85 °C	-40 °C	Through Hole	18 V	6 V	Class AB	2 channels 7 W 8 Ohm	Depop Mute Short-Circuit and Thermal Protection Standby	2-Channel (Stereo)	17-SIP Formed Leads	DBS17P
Freescale Semiconductor - NXP TDA8946AJ/N2,112	85 °C	-40 °C	Through Hole	18 V	4.5 V	Class AB	15 W	Depop Mute Short-Circuit and Thermal Protection Standby	2-Channel (Stereo)	17-SIP Formed Leads	DBS17P	2	8 Ohm
Freescale Semiconductor - NXP TDA8945S/N1,112	70 °C	-40 °C	Through Hole	25 V	6 V	Class AB	1 15 W	Depop Mute Short-Circuit and Thermal Protection Standby	1-Channel (Mono)	9-SIP	9-PSIL
Freescale Semiconductor - NXP TDA8941P/N1,112	85 °C	-40 °C	Through Hole	18 V	6 V	Class AB	1.5 W	Depop Mute Short-Circuit and Thermal Protection Standby	1-Channel (Mono)	8-DIP	8-DIP	1 16 Ohm		0.3 in	7.62 mm
Freescale Semiconductor - NXP TDA8947J/N3,112	85 °C	-40 °C	Through Hole	26 V	9 V	Class AB	14 W 29 W	Depop Mute Short-Circuit and Thermal Protection Standby	4-Channel (Quad)	17-SIP Formed Leads	DBS17P
Freescale Semiconductor - NXP TDA8944AJ/N2,112	85 °C	-40 °C	Through Hole	18 V	4.5 V	Class AB	2 channels 7 W 8 Ohm	Depop Mute Short-Circuit and Thermal Protection Standby Volume Control	2-Channel (Stereo)	17-SIP Formed Leads	DBS17P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TDA894 Series

Amplifier IC 1-Channel (Mono) Class AB 9-PSIL
