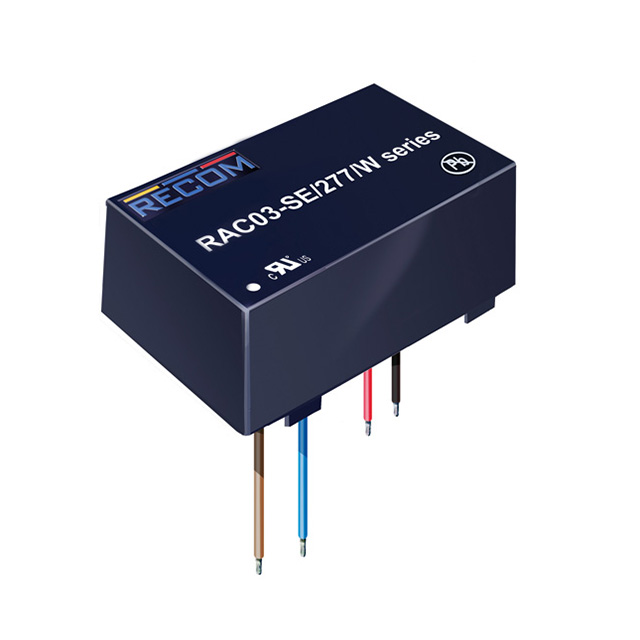

RAC03-12SE/277/W

RECOM Power

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUTS, 3 W, 12 V, 250 MA

Search across all available documentation for this part.

RECOM Power

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUTS, 3 W, 12 V, 250 MA

Technical Specifications

Parameters and characteristics for this part

Specification	RAC03-12SE/277/W

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	250 mA
Efficiency	78 %
Features	Universal Input, DC Input Capable
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	3 W
Size / Dimension [x]	1.5 in
Size / Dimension [x]	38.1 mm
Size / Dimension [y]	24.3 mm
Size / Dimension [y]	0.96 in
Size / Dimension [z]	0.69 "
Size / Dimension [z]	17.4 mm
Type	Enclosed
Voltage - Input [Max]	305 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

AC/DC Power Modules 3W 85-305Vin 24Vout 130mA

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Weight	Weight	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Load Regulation	Number of Outputs	Mounting Type	Approval Agency	Applications	Type	Current - Output (Max) [Max]	Power (Watts)	Line Regulation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Current - Output 1	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Features	Current - Output (Max)	Size / Dimension [x]	Size / Dimension [z]
RECOM Power RAC03-12SGB	85 °C	-40 °C	12 V	0.044 lb	19.96 g	85 VAC	305 VAC	78 %	0.5 %	1	Through Hole	CE cURus	ITE (Commercial)	Enclosed	250 mA	3 W	0.5 %	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in	16-DIP Module 5 Leads
RECOM Power RAC03-12SE/277/W	85 °C	-40 °C	12 V			85 VAC	305 VAC	78 %		1	Chassis Mount	CE cURus	Household Appliances ITE (Commercial)	Enclosed		3 W		0.69 "		38.1 mm	1.5 in		0.96 in		250 mA	3000 V	24.3 mm	17.4 mm	DC Input Capable Universal Input
RECOM Power RAC03-09SGB	85 °C	-40 °C	9 V			85 VAC	305 VAC	77 %	0.5 %	1	Through Hole	CE cURus	ITE (Commercial)	Enclosed		3 W	0.5 %	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in	16-DIP Module 5 Leads						330 mA
RECOM Power RAC03-12SK	80 ¯C	-40 °C	12 V			85 VAC 120 VDC	264 VAC 370 VDC	78 %	2.5 %	1	Through Hole	CE cURus	Household Appliances ITE (Commercial)	Enclosed	250 mA	3 W	2.5 %			1.12 "		23.5 mm		4-DIP Module			0.93 "	0.7 in	Universal Input		28.5 mm	17.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC Power Modules 3W 85-305Vin 24Vout 130mA
