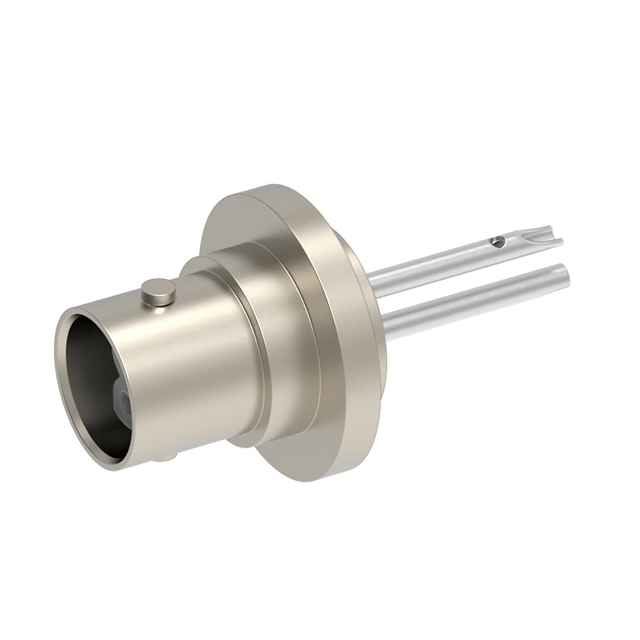

R605400000

Active

Radiall USA, Inc.

BR2 / STRAIGHT FEMALE SQUARE FLA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BR2 / STRAIGHT FEMALE SQUARE FLA

Technical Specifications

Parameters and characteristics for this part

Specification	R605400000

Body Finish	Nickel
Body Material	Brass
Connector Style	BR2
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polyamide (PA), Nylon, Diallyl Phthalate (DAP)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	80 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Shield Termination	Body Finish	Connector Type	Frequency - Max [Max]	Connector Style	Dielectric Material	Fastening Type	Housing Color	Contact Termination	Mounting Feature	Body Material	Impedance	Number of Ports
Radiall USA, Inc. R605400000	100 °C	-40 °C	500	Solder	Nickel	Female Socket Receptacle	500 MHz	BR2	Diallyl Phthalate (DAP) Nylon Polyamide (PA)	Bayonet Lock	Silver	Solder Cup	Flange	Brass	80 Ohms	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 37.29

General part information

BR2 Connector Receptacle, Female Socket 80 Ohms Panel Mount Solder Cup
