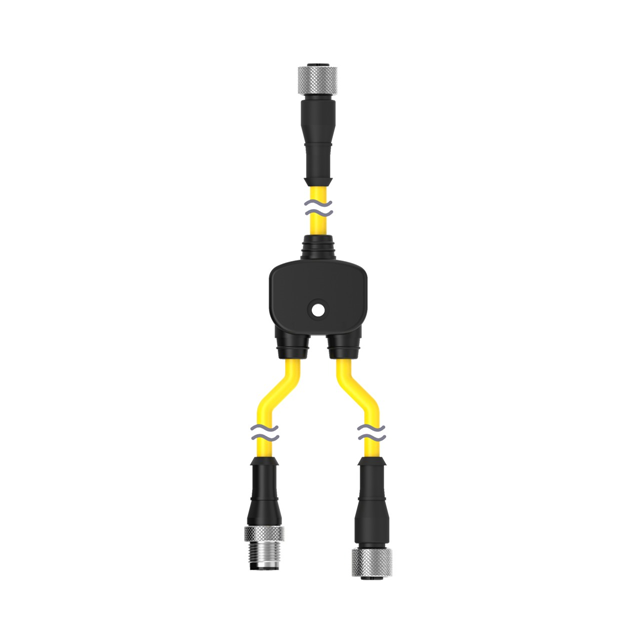

CSS-M12F48M12M41M12F41

Active

BANNER ENGINEERING

EURO QUICK DISCONNECT SPLITTER CABLE

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EURO QUICK DISCONNECT SPLITTER CABLE

Technical Specifications

Parameters and characteristics for this part

Specification	CSS-M12F48M12M41M12F41

1st Connector Gender	Male Pins, Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Plug
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Y-Adapter on One End
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round - Split
Color	Yellow
Ingress Protection	IP68 - Dust Tight, Waterproof
Length	2.74 m
Length	9 '
Shielding	Unshielded
Usage	Industrial Environments

Part	Length	Length	2nd Connector Mounting Type	2nd Connector Number of Positions Loaded	1st Connector Gender	Cable Material	1st Connector Orientation [custom]	1st Connector Shell Size - Insert	1st Connector Type	2nd Connector Gender	Usage	Shielding	Cable Type	Ingress Protection	Assembly Configuration	Color	2nd Connector Number of Positions	1st Connector Number of Positions Loaded	2nd Connector Type	1st Connector Mounting Type	2nd Connector Shell Size - Insert	1st Connector Number of Positions	Length [x]	Length [x]
BANNER ENGINEERING CSS-M12F48M12M41M12F41	2.74 m	9 '	Free Hanging (In-Line)	All	Female Sockets Male Pins	Polyvinyl Chloride (PVC)	Keyed	M12	Plug Receptacle	Female Sockets	Industrial Environments	Unshielded	Round - Split	IP68 - Dust Tight Waterproof	Y-Adapter on One End	Yellow	4	All	Plug	Free Hanging (In-Line)	M12	4
BANNER ENGINEERING CSS-M12F43M12M41M12F41			Free Hanging (In-Line)	All	Female Sockets Male Pins	Polyvinyl Chloride (PVC)	Keyed	M12	Plug Receptacle	Female Sockets	Industrial Environments	Unshielded	Round - Split	IP68 - Dust Tight Waterproof	Y-Adapter on One End	Yellow	4	All	Plug	Free Hanging (In-Line)	M12	4	1.22 m	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 110.00
Newark	Each	1	$ 112.00

General part information

Circular Cable Assembly Unshielded 9.00' (2.74m)
