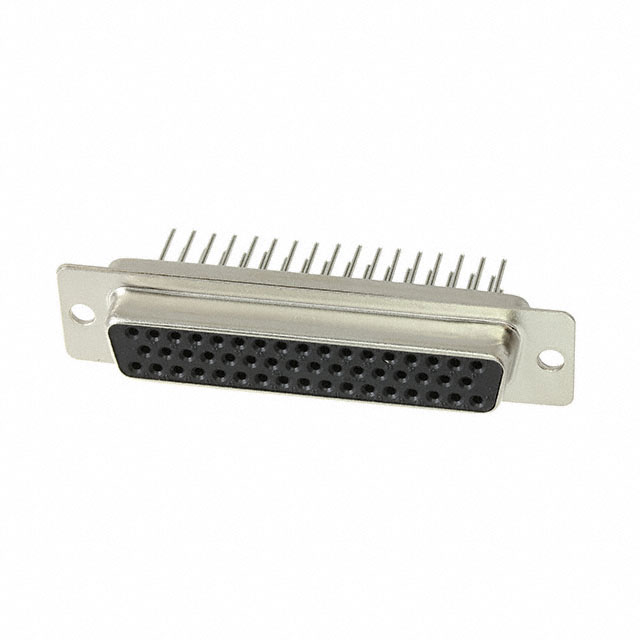

SDDG-50S(55)

LTB

Hirose Electric USA, Inc.

CONN D-SUB RCPT 50P PNL MNT SLDR

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN D-SUB RCPT 50P PNL MNT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	SDDG-50S(55)

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	50
Number of Rows	3
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	350 V

Part	Number of Positions	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Mounting Type	Color	Flange Feature	Termination	Connector Style	Current Rating (Amps)	Contact Material	Shell Size, Connector Layout	Voltage Rating	Contact Type	Number of Rows	Contact Finish	Material Flammability Rating	Connector Type
Hirose Electric USA, Inc. SDDG-50S(55)	50	Nickel Plated Steel	8 çin	0.203 çm	Polybutylene Terephthalate (PBT)	Panel Mount Through Hole	Black	Housing/Shell (Unthreaded)	Solder	D-Sub	3 A	Phosphor Bronze	5	350 V	Signal	3	Gold	UL94 V-0	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Sub Receptacle, Female Sockets Connector
