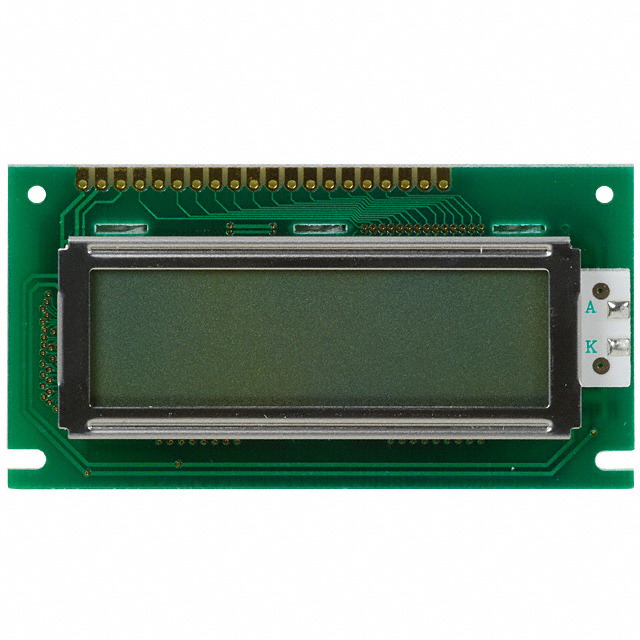

LCM-S12232GSF
ActiveLumex Opto/Components Inc.
LCD MOD GRAPHIC 122X32 W/LED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCM-S12232GSF
ActiveLumex Opto/Components Inc.
LCD MOD GRAPHIC 122X32 W/LED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCM-S12232GSF |
|---|---|
| Background Color | Green |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [x] | 0.44 mm |
| Dot Pitch [y] | 0.49 mm |
| Dot Size [x] | 0.4 mm |
| Dot Size [y] | 0.45 mm |
| Graphics Color | Gray |
| Interface | Parallel, 8-Bit |
| Viewing Area [x] | 60.5 mm |
| Viewing Area [y] | 18.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LCM-S12232 Series
Graphic LCD Display Module Transflective Gray STN - Super-Twisted Nematic Parallel, 8-Bit 122 x 32
Documents
Technical documentation and resources
