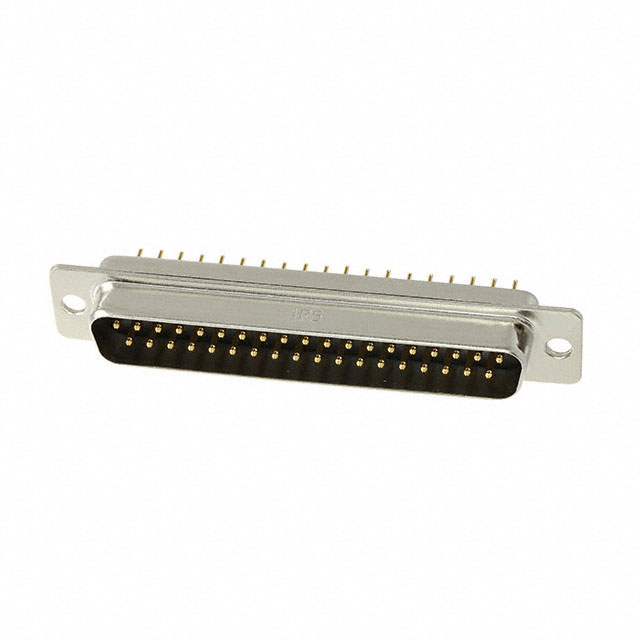

SDCB-37P(55)

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG 37P PNL MNT SLDR

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG 37P PNL MNT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	SDCB-37P(55)

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	37
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder
Voltage Rating	350 V

Part	Shell Size, Connector Layout	Voltage Rating	Connector Type	Dielectric Material	Termination	Current Rating (Amps)	Contact Type	Shell Material, Finish	Connector Style	Number of Rows	Contact Finish	Contact Material	Material Flammability Rating	Mounting Type	Flange Feature	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. SDCB-37P(55)	4 (DC C)	350 V	Male Pins Plug	Polybutylene Terephthalate (PBT)	Solder	3 A	Signal	Nickel Plated Steel	D-Sub	2	Gold	Phosphor Bronze	UL94 V-0	Panel Mount Through Hole	Housing/Shell (Unthreaded)	37	Black	8 çin	0.203 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Plug, Male Pins Connector
