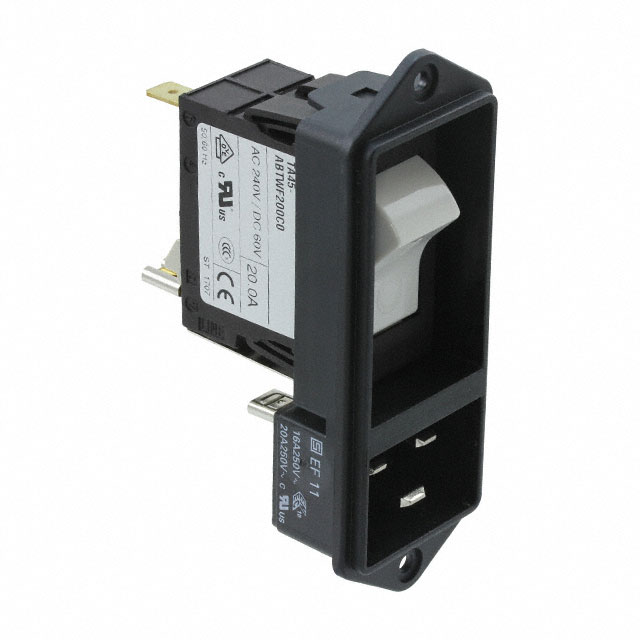

EF11.0035.0010.01

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	EF11.0035.0010.01

Accomodates a Fuse	False
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C20
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Circuit Breaker	20 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	32.5 mm
Panel Cutout Dimensions [y]	79.5 mm
Switch Features	Circuit Breaker, Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Switch Features	Mounting Type	Current Rating - Appliance Inlet	Connector Type	Material Flammability Rating	Voltage Rating - Appliance Inlet	Filter Type	Accomodates a Fuse	Current Rating - Circuit Breaker	Connector Style	Approval Agency	Panel Thickness [custom]	Panel Thickness [custom]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Termination	Ingress Protection
SCHURTER Inc. EF11.0035.0012.01	Circuit Breaker Switch On-Off	Panel Mount Snap-In	10 A	Receptacle Male Blades - Module	UL94 V-0	250 VAC	Unfiltered - Commercial		20 A	IEC 320-C20	cULus ENEC	0.059 in	1.5 mm	79.5 mm	32.5 mm	0.25 in	6.3 mm	Quick Connect	IP40
SCHURTER Inc. EF11.0035.0010.01	Circuit Breaker Switch On-Off	Flange Panel Mount	10 A	Receptacle Male Blades - Module	UL94 V-0	250 VAC	Unfiltered - Commercial		20 A	IEC 320-C20	cULus ENEC			79.5 mm	32.5 mm	0.25 in	6.3 mm	Quick Connect	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C20 Panel Mount, Flange
