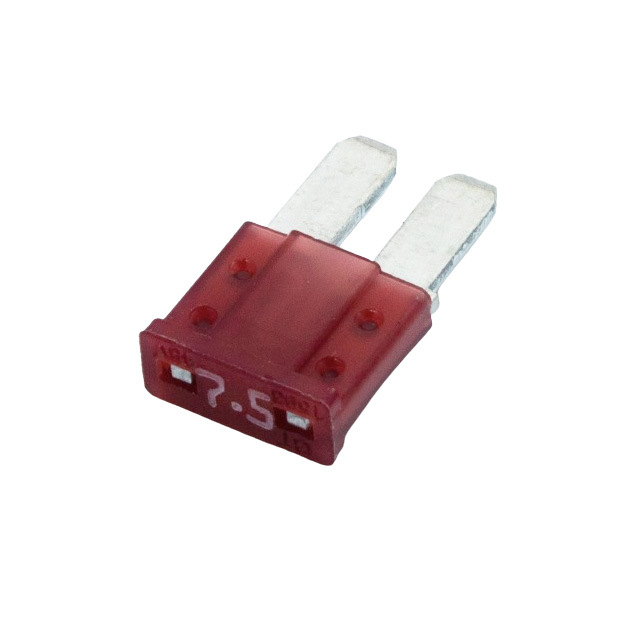

APT-7.5A

Active

OptiFuse

48V 1KA 7.5A AUTOMOTIVE FUSES ROHS

Search across all available documentation for this part.

Active

OptiFuse

48V 1KA 7.5A AUTOMOTIVE FUSES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	APT-7.5A

Breaking Capacity @ Rated Voltage	1 kA
Color	Brown
Current Rating (Amps)	7.5 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-45 °C
Package / Case	Blade, Micro
Response Time	Fast Blow
Size / Dimension [x]	0.358 in
Size / Dimension [x]	9.1 mm
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.8 mm
Size / Dimension [z]	7.9 mm
Size / Dimension [z]	0.311 "
Voltage Rating - DC	48 V

Part	Package / Case	Response Time	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Color	Voltage Rating - DC	Fuse Type	Mounting Type	Breaking Capacity @ Rated Voltage	Operating Temperature [Max]	Operating Temperature [Min]
OptiFuse APT-7.5A	Blade Micro	Fast Blow	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm	7.5 A	Brown	48 V	Automotive	Requires Holder	1 kA	125 °C	-45 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7.5 A AC 48 V DC Fuse Automotive Requires Holder Blade, Micro
