RFAA4SMAPNJA

Active

BULGIN LIMITED

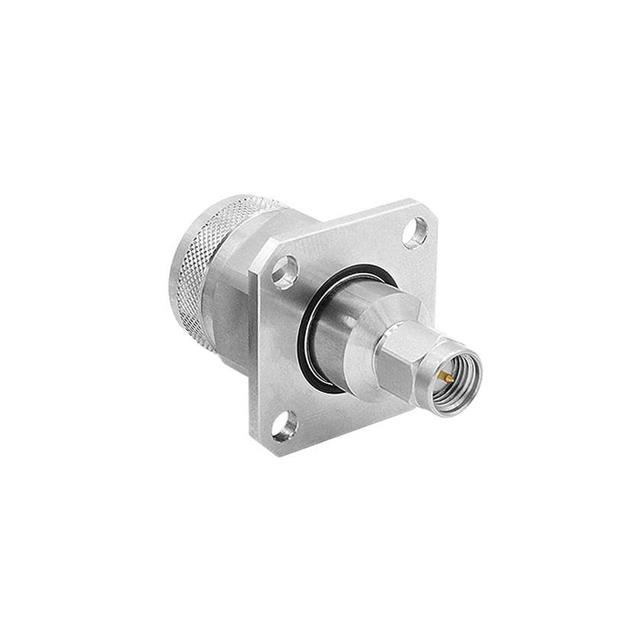

RF / COAXIAL ADAPTER, SMA, PLUG, N, JACK, STRAIGHT PANEL ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFAA4SMAPNJA

Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	26.5 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

RFAA4SMA Series

Part	Frequency - Max [Max]	Body Material	Adapter Type	Convert To (Adapter End)	Style	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Conversion Type	Center Contact Material	Mating Cycles	Impedance	Adapter Series	Mounting Feature	Dielectric Material
BULGIN LIMITED RFAA4SMAPSMAP	26.5 GHz	Stainless Steel	Plug to Plug	Male Pin SMA Plug	Straight	Male to Male	-65 ░C	165 °C	SMA Plug Male Pin	Same Series	Beryllium Copper	500	50 Ohms	SMA to SMA	Flange	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFAA4SMAPNJA	26.5 GHz	Stainless Steel	Plug to Jack	Female Socket N Jack	Straight		-65 ░C	165 °C	SMA Plug Male Pin	Between Series	Beryllium Copper	500	50 Ohms		Flange	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFAA4SMAPNJB	26.5 GHz	Stainless Steel	Plug to Jack	Female Socket N Jack	Straight		-65 ░C	165 °C	SMA Plug Male Pin	Between Series	Beryllium Copper	500	50 Ohms		Flange	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFAA4SMAPSMAJ	26.5 GHz	Stainless Steel	Plug to Jack	Female Socket SMA Jack	Straight		-65 ░C	165 °C	SMA Plug Male Pin	Same Series	Beryllium Copper	500	50 Ohms	SMA to SMA	Flange	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFAA4SMAJNJB	26.5 GHz	Stainless Steel	Jack to Jack	Female Socket N Jack	Straight	Female to Female	-65 ░C	165 °C	Female Socket SMA Jack	Between Series	Beryllium Copper	500	50 Ohms		Flange	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)
BULGIN LIMITED RFAA4SMAJSMAJ	26.5 GHz	Stainless Steel	Jack to Jack	Female Socket SMA Jack	Straight	Female to Female	-65 ░C	165 °C	Female Socket SMA Jack	Same Series	Beryllium Copper	500	50 Ohms	SMA to SMA	Flange	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 103.00
Newark	Each	1	$ 160.39

Description

General part information

RFAA4SMA Series

Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
