100025191

Active

Telegartner Inc

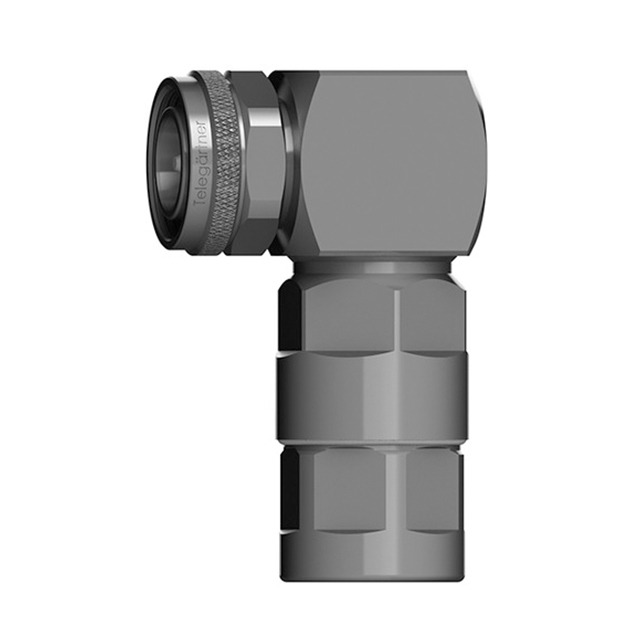

4.3-10 ANGLE PLUG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100025191

Active

Telegartner Inc

4.3-10 ANGLE PLUG SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100025191

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Silver
Connector Style	4.3/10
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Clamp
Voltage Rating	1000 VDC

J01440A0 Series

Part	Impedance	Housing Color	Number of Ports	Dielectric Material	Connector Style	Frequency - Max [Max]	Mounting Type	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Contact Termination	Center Contact Plating	Body Material	Connector Type	Center Contact Material	Ingress Protection	Voltage Rating	Mating Cycles
Telegartner Inc 100025204	50 Ohms	Silver	1	Polytetrafluoroethylene (PTFE)	4.3/10	6000 MHz	Free Hanging (In-Line)	White Bronze	85 °C	-40 °C	Crimp	Crimp	Silver	Brass	Male Pin Plug	Brass
Telegartner Inc 100025193	50 Ohms	Silver	1	Polytetrafluoroethylene (PTFE)	4.3/10	6000 MHz	Free Hanging (In-Line) Right Angle	White Bronze	85 °C	-40 °C	Crimp	Solder	Silver	Brass	Male Pin Plug	Brass	IP67 - Dust Tight Waterproof
Telegartner Inc 100033386	50 Ohms	Silver	1		4.3/10	6000 MHz	Free Hanging (In-Line)	White Bronze	85 °C	-40 °C	Clamp	Crimp Solder	Silver	Brass	Male Pin Plug	Copper Alloy	IP68 - Dust Tight Waterproof	1000 VDC
Telegartner Inc 100025180	50 Ohms	Silver	1	Polytetrafluoroethylene (PTFE)	4.3/10	6000 MHz	Free Hanging (In-Line)	White Bronze	85 °C	-40 °C	Crimp	Crimp	Silver	Brass	Male Pin Plug	Brass
Telegartner Inc 100025200	50 Ohms	Silver	1	Polytetrafluoroethylene (PTFE)	4.3/10	6000 MHz	Free Hanging (In-Line)	Silver	155 °C	-55 °C	Solder	Solder	Silver	Brass	Male Pin Plug	Brass	IP67 - Dust Tight Waterproof
Telegartner Inc 100025201	50 Ohms	Silver	1	Polytetrafluoroethylene (PTFE)	4.3/10	6000 MHz	Free Hanging (In-Line)	Silver	155 °C	-55 °C	Solder	Solder	Silver	Brass	Male Pin Plug	Brass	IP67 - Dust Tight Waterproof
Telegartner Inc 100025185	50 Ohms	Silver	1		4.3/10	6000 MHz	Free Hanging (In-Line)	White Bronze	85 °C	-40 °C	Clamp	Crimp Solder	Silver	Brass	Male Pin Plug	Copper Alloy	IP68 - Dust Tight Waterproof	1000 VDC	500
Telegartner Inc 100025187	50 Ohms	Silver	1	Polytetrafluoroethylene (PTFE)	4.3/10	6000 MHz	Free Hanging (In-Line)	White Bronze	85 °C	-40 °C	Crimp	Crimp	Silver	Brass	Male Pin Plug	Copper Alloy
Telegartner Inc 100025191	50 Ohms	Silver	1	Polytetrafluoroethylene (PTFE)	4.3/10	6000 MHz	Free Hanging (In-Line) Right Angle	White Bronze	85 °C	-40 °C	Clamp	Crimp Solder	Silver	Brass	Male Pin Plug	Copper Alloy	IP68 - Dust Tight Waterproof	1000 VDC
Telegartner Inc 100025190	50 Ohms	Silver	1	Polytetrafluoroethylene (PTFE)	4.3/10	6000 MHz	Free Hanging (In-Line) Right Angle	White Bronze	85 °C	-40 °C	Clamp	Crimp Solder	Silver	Brass	Male Pin Plug	Copper Alloy	IP68 - Dust Tight Waterproof	1000 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 64.79
		10	$ 59.54
		25	$ 55.07
		50	$ 48.95

Description

General part information

J01440A0 Series

4.3/10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp or Solder
