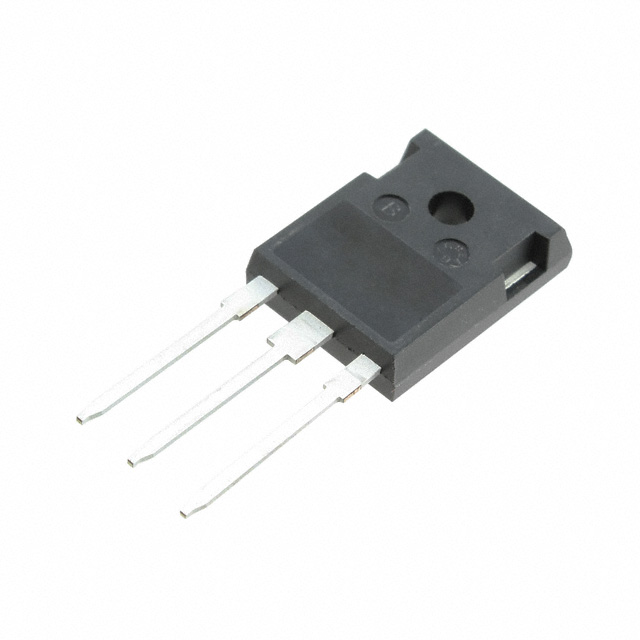

CS45-16IO1R

Active

IXYS

SCR 1.6KV 75A ISOPLUS247

Search across all available documentation for this part.

Active

IXYS

SCR 1.6KV 75A ISOPLUS247

Technical Specifications

Parameters and characteristics for this part

Specification	CS45-16IO1R

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	560 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	520 A
Current - Off State (Max) [Max]	5 mA
Current - On State (It (AV)) (Max) [Max]	48 A
Current - On State (It (RMS)) (Max)	75 A
Mounting Type	Through Hole
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-247-3
SCR Type	Standard Recovery
Supplier Device Package	ISOPLUS247™
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	1.6 kV
Voltage - On State (Vtm) (Max) [Max]	1.64 V

Part	Current - Gate Trigger (Igt) (Max) [Max] [x]	Current - Off State (Max) [Max]	SCR Type	Current - Hold (Ih) (Max) [Max]	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max) [Max]	Supplier Device Package	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - On State (It (RMS)) (Max)	Voltage - On State (Vtm) (Max) [Max]
IXYS CS45-16IO1R	100 mA	5 mA	Standard Recovery	100 mA	1.6 kV	1.5 V	ISOPLUS247™	Through Hole	TO-247-3	140 °C	-40 °C	48 A	560 A	520 A	75 A	1.64 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 1.6 kV 75 A Standard Recovery Through Hole ISOPLUS247™
