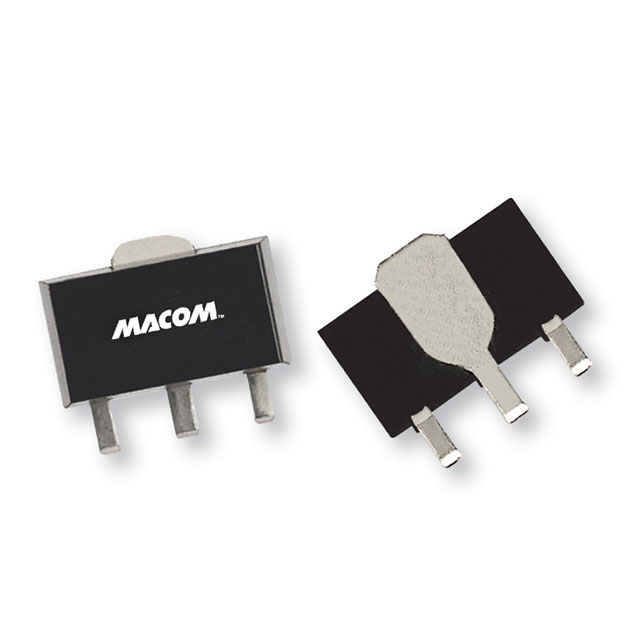

XF1001-SC-EV1

Active

MACOM Technology Solutions

EVAL MODULE,XF1001-SC-0G00,5800M

Search across all available documentation for this part.

Active

MACOM Technology Solutions

EVAL MODULE,XF1001-SC-0G00,5800M

Technical Specifications

Parameters and characteristics for this part

Specification	XF1001-SC-EV1

For Use With/Related Products	XF1001-SC
Frequency [Max]	6 GHz
Frequency [Min]	0 Hz
Supplied Contents	Board(s)
Type	Transistor

Part	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Supplied Contents	Type	Current Rating (Amps)	Voltage - Test	Noise Figure	Voltage - Rated	Frequency	Gain	Current - Test	Mounting Type	Package / Case
MACOM Technology Solutions XF1001-SC-EV1	6 GHz	0 Hz	XF1001-SC	Board(s)	Transistor
MACOM Technology Solutions XF1001-SC-0G0T						450 mA	8 V	4.5 dB	9 V	6 GHz	15.5 dBi	300 mA	Surface Mount	TO-243AA
MACOM Technology Solutions XF1001-SC-0G00						450 mA	8 V	4.5 dB	9 V	6 GHz	15.5 dBi	300 mA	Surface Mount	TO-243AA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 787.50

General part information

XF1001-SC - Transistor 0Hz ~ 6GHz Evaluation Board

Technical documentation and resources

No documents available
