1411078

Active

Phoenix Contact

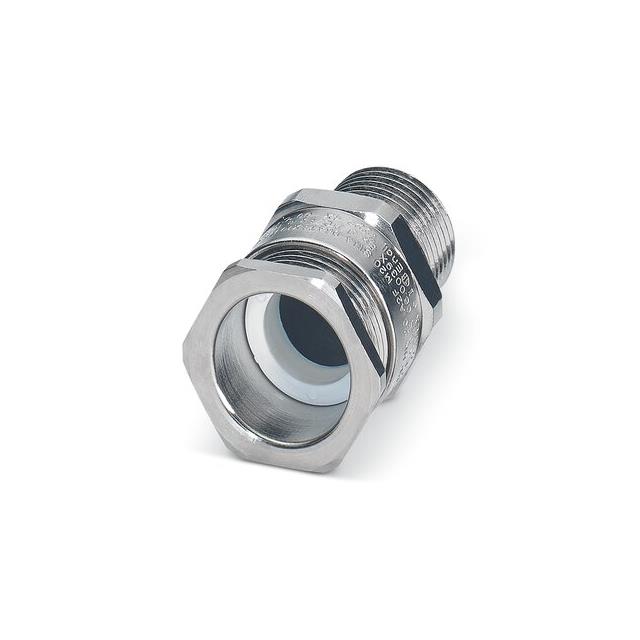

CABLE GLND 11.1-20MM M25 S STEEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1411078

Active

Phoenix Contact

CABLE GLND 11.1-20MM M25 S STEEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1411078

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68, IP66, IP67
Material	Stainless Steel
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.787 "
Outside Cable Diameter (Max) [Max] [diameter]	20 mm
Outside Cable Diameter (Min) [Min] [diameter]	11.1 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.437 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M25
Type	Cable Gland

G-ESS Series

Part	Includes	Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Type	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Phoenix Contact 1411079	O-Ring Seal	Silver	IP66 IP67 IP68	130 °C	-60 °C	0.591 in	15 mm	Brass Nickel Plated	26.3 mm	1.035 in	M32	Cable Gland
Phoenix Contact 1411077	O-Ring Seal	Silver	IP66 IP67 IP68	130 °C	-60 °C	0.591 in	15 mm	Brass Nickel Plated	20 mm	0.787 "	M25	Cable Gland	11.18 mm	0.44 in
Phoenix Contact 1411087	O-Ring Seal	Silver	IP66 IP67 IP68	130 °C	-60 °C	0.591 in	15 mm	Stainless Steel		2.205 in	M63	Cable Gland			56 mm
Phoenix Contact 1411075	O-Ring Seal	Silver	IP66 IP67 IP68	130 °C	-60 °C	0.591 in	15 mm	Brass Nickel Plated			M20	Cable Gland		0.256 in		14 mm	0.551 "	6.5 mm
Phoenix Contact 1411078	O-Ring Seal	Silver	IP66 IP67 IP68	130 °C	-60 °C	0.591 in	15 mm	Stainless Steel	20 mm	0.787 "	M25	Cable Gland						11.1 mm	0.437 in
Phoenix Contact 1411081	O-Ring Seal	Silver	IP66 IP67 IP68	130 °C	-60 °C	0.591 in	15 mm	Brass Nickel Plated	32.2 mm	1.268 in		Cable Gland								23.5 mm	0.925 "
Phoenix Contact 1411084	O-Ring Seal	Silver	IP66 IP67 IP68	130 °C	-60 °C	0.591 in	15 mm	Brass Nickel Plated	44.1 mm	1.736 "	M50	Cable Gland		1.402 in				35.6 mm
Phoenix Contact 1411085	O-Ring Seal	Silver	IP66 IP67 IP68	130 °C	-60 °C	0.591 in	15 mm	Stainless Steel	44.1 mm	1.736 "	M50	Cable Gland		1.402 in				35.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 74.45

Description

General part information

G-ESS Series

Cable Gland Stainless Steel M25 Silver
