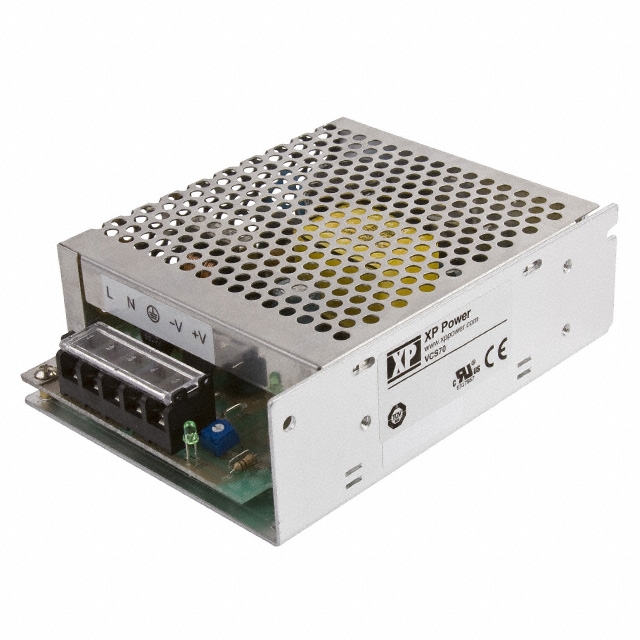

VCS70US12

Active

XP POWER

AC/DC CONVERTER 12V 70W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 12V 70W

Technical Specifications

Parameters and characteristics for this part

Specification	VCS70US12

Applications	ITE (Commercial)
Approval Agency	CB
Current - Output 1	5.83 A
Efficiency	87 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	70 W
Size / Dimension [x]	5.12 "
Size / Dimension [x]	130 mm
Size / Dimension [y]	3.88 in
Size / Dimension [y]	98.5 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Current - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Efficiency	Features	Mounting Type	Minimum Load Required	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Type	Power (Watts)	Approval Agency	Applications	Standard Number	Voltage - Isolation
XP POWER VCS70US12	5.83 A	1.61 "	3.88 in	41 mm	98.5 mm	5.12 "	130 mm	12 V	87 %	Adjustable Output DC Input Capable Universal Input	Chassis Mount		1	-25 °C	70 °C	Enclosed	70 W	CB	ITE (Commercial)	62368-1	3000 V
