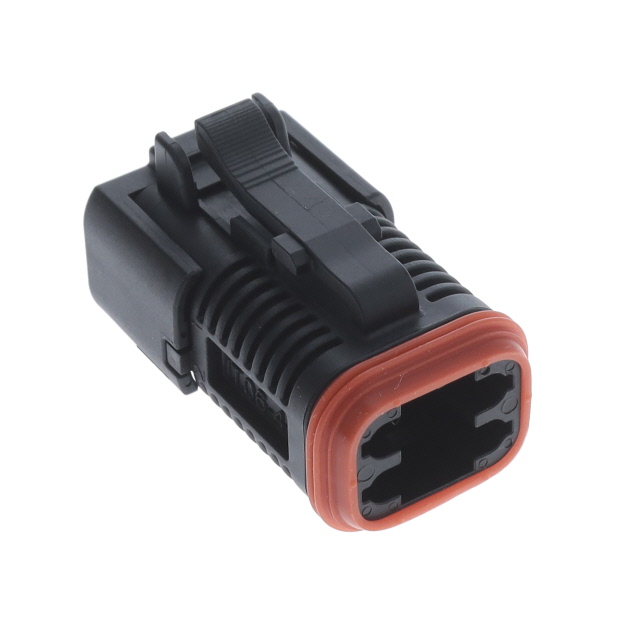

IT06-4S-004-N

Active

ITT Cannon, LLC

2 HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

2 HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	IT06-4S-004-N

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	IP69K, IP67, Cap (Cover), Sealed, IP68
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Contact Termination	Insulation Material	Contact Type	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Mounting Type	Number of Rows	Features
ITT Cannon, LLC IT06-4S-002	Crimp	Glass Filled Nylon Polyamide (PA)	Female Socket	Plug	Latch Lock	-55 °C	125 °C	4	Gray	Free Hanging (In-Line)	2
ITT Cannon, LLC IT06-4S-004	Crimp	Glass Filled Nylon Polyamide (PA)	Female Socket	Plug	Latch Lock	-55 °C	125 °C	4	Black	Free Hanging (In-Line)	2	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT06-4S-004-N	Crimp	Glass Filled Nylon Polyamide (PA)	Female Socket	Plug	Latch Lock	-55 °C	125 °C	4	Black	Free Hanging (In-Line)	2	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT06-4S-006-N	Crimp	Glass Filled Nylon Polyamide (PA)	Female Socket	Plug	Latch Lock	-55 °C	125 °C	4	Black	Free Hanging (In-Line)	2
ITT Cannon, LLC IT06-4S-000-N	Crimp	Glass Filled Nylon Polyamide (PA)	Female Socket	Plug	Latch Lock	-55 °C	125 °C	4	Gray	Free Hanging (In-Line)	2	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT06-4S-002-N	Crimp	Glass Filled Nylon Polyamide (PA)	Female Socket	Plug	Latch Lock	-55 °C	125 °C	4	Gray	Free Hanging (In-Line)	2
ITT Cannon, LLC IT06-4S-000	Crimp	Glass Filled Nylon Polyamide (PA)	Female Socket	Plug	Latch Lock	-55 °C	125 °C	4	Gray	Free Hanging (In-Line)	2	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT06-4S-006	Crimp	Glass Filled Nylon Polyamide (PA)	Female Socket	Plug	Latch Lock	-55 °C	125 °C	4	Black	Free Hanging (In-Line)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Black
