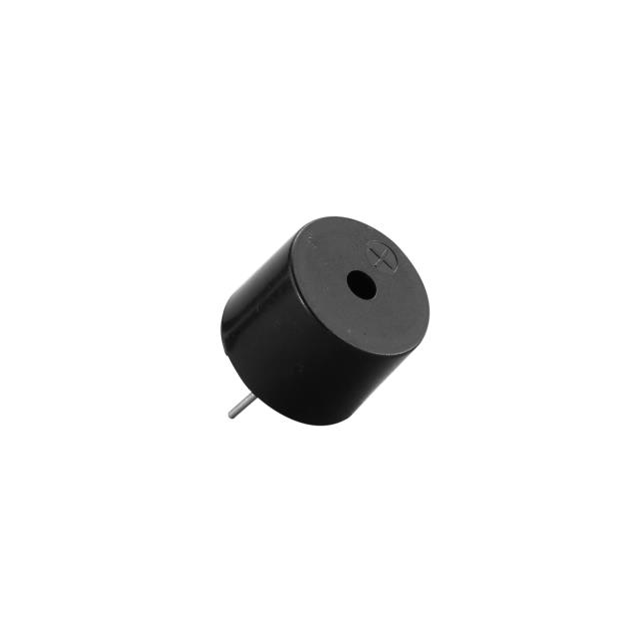

EMX-7TB12P
ActiveEast Electronics
BUZZER 12V 12MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EMX-7TB12P
ActiveEast Electronics
BUZZER 12V 12MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EMX-7TB12P |
|---|---|
| Current - Supply | 40 mA |
| Frequency | 2.7 kHz |
| Height - Seated (Max) [Max] | 0.394 in |
| Height - Seated (Max) [Max] | 10 mm |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 12 mm |
| Size / Dimension [diameter] | 0.472 in |
| Sound Pressure Level (SPL) | 86 dB |
| Termination | PC Pins |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 15 V |
| Voltage Range [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.68 | |
| 100 | $ 0.45 | |||
| 1000 | $ 0.37 | |||
Description
General part information
EMX-7TB12 Series
Buzzers 12 V 40mA 2.7kHz 86dB @ 12V, 10cm Through Hole PC Pins
