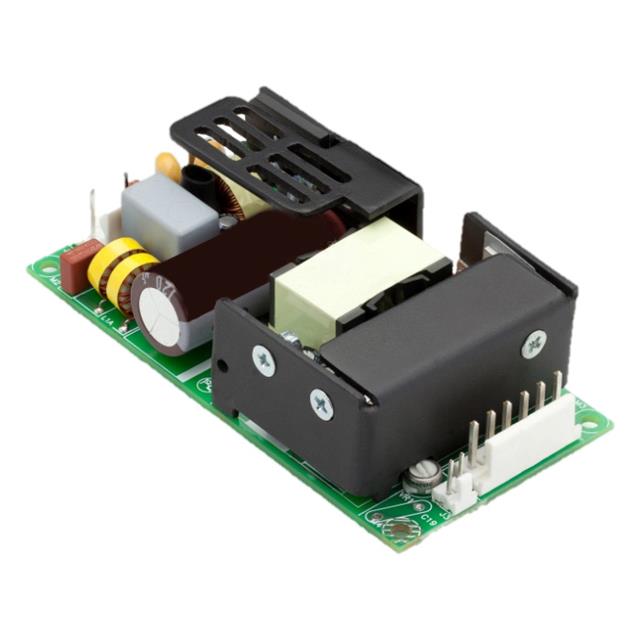

LFWLT60-1003

Active

EOS Power India Private Ltd

AC/DC CONVERTER 24V 65W

Deep-Dive with AI

Search across all available documentation for this part.

LFWLT60-1003

Active

EOS Power India Private Ltd

AC/DC CONVERTER 24V 65W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFWLT60-1003

Applications	ITE (Commercial)
Approval Agency	cUL, NEMKO, UL, CE
Current - Output 1	2.7 A
Efficiency	85 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	28.5 mm
Size / Dimension [z]	1.12 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	24 V

WLT60 Series

Part	Applications	Type	Approval Agency	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Current - Output 3	Voltage - Output 1	Efficiency	Current - Output 1	Number of Outputs	Features	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Current - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 3	Size / Dimension [z]	Size / Dimension [y]	Accessory Type	For Use With/Related Products
EOS Power India Private Ltd LFWLT60-3003	ITE (Commercial)	Open Frame	CE cUL NEMKO UL	5.2 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	42 W	500 mA	3.3 V	85 %	6 A	3	Adjustable Output Universal Input	4.242 kV	90 VAC	264 VAC	Chassis Mount	3 A	-20 °C	70 °C	-12.8 V
EOS Power India Private Ltd LFWLT60-1002	ITE (Commercial)	Open Frame	CE cUL NEMKO UL		101.6 mm	2 in		4 in		1.12 in			15 V	85 %	4.33 A	1	Adjustable Output Universal Input	4.242 kV	90 VAC	264 VAC	Chassis Mount		-20 °C	70 °C		28.5 mm	50.8 mm
EOS Power India Private Ltd LFWLT60-1001	ITE (Commercial)	Open Frame	CE cUL NEMKO UL		101.6 mm	2 in		4 in		1.12 in			12 V	85 %		1	Adjustable Output Universal Input	4.242 kV	90 VAC	264 VAC	Chassis Mount		-20 °C	70 °C		28.5 mm	50.8 mm
EOS Power India Private Ltd LFWLT60-3001	ITE (Commercial)	Open Frame	CE cUL NEMKO UL	23.8 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	84 W	500 mA	5.2 V	85 %	8 A	3	Adjustable Output Universal Input	4.242 kV	90 VAC	264 VAC	Chassis Mount	1.5 A	-20 °C	70 °C	-12.5 V
EOS Power India Private Ltd LFWLT60-1004	ITE (Commercial)	Open Frame	CE cUL NEMKO UL		101.6 mm	2 in		4 in		1.12 in			48 V	85 %	1.35 A	1	Adjustable Output Universal Input	4.242 kV	90 VAC	264 VAC	Chassis Mount		-20 °C	70 °C		28.5 mm	50.8 mm
EOS Power India Private Ltd LFWLT60-3000	ITE (Commercial)	Open Frame	CE cUL NEMKO UL	12.5 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 W	500 mA	5.2 V	85 %	8 A	3	Adjustable Output Universal Input	4.242 kV	90 VAC	264 VAC	Chassis Mount	3 A	-20 °C	70 °C	-12.5 V
EOS Power India Private Ltd LFWLT60-1003	ITE (Commercial)	Open Frame	CE cUL NEMKO UL		101.6 mm	2 in		4 in		1.12 in			24 V	85 %	2.7 A	1	Adjustable Output Universal Input	4.242 kV	90 VAC	264 VAC	Chassis Mount		-20 °C	70 °C		28.5 mm	50.8 mm
EOS Power India Private Ltd LFWLT60-CK																												Cover Assembly	LFWLT60 Series
EOS Power India Private Ltd LFWLT60-3002	ITE (Commercial)	Open Frame	CE cUL NEMKO UL	14.6 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	86 W	500 mA	5.2 V	85 %	8 A	3	Adjustable Output Universal Input	4.242 kV	90 VAC	264 VAC	Chassis Mount		-20 °C	70 °C	-16.2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.87
		5	$ 34.74
		10	$ 33.85
		25	$ 32.72
		50	$ 31.89
		100	$ 31.09
		250	$ 30.05

Description

General part information

WLT60 Series

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
