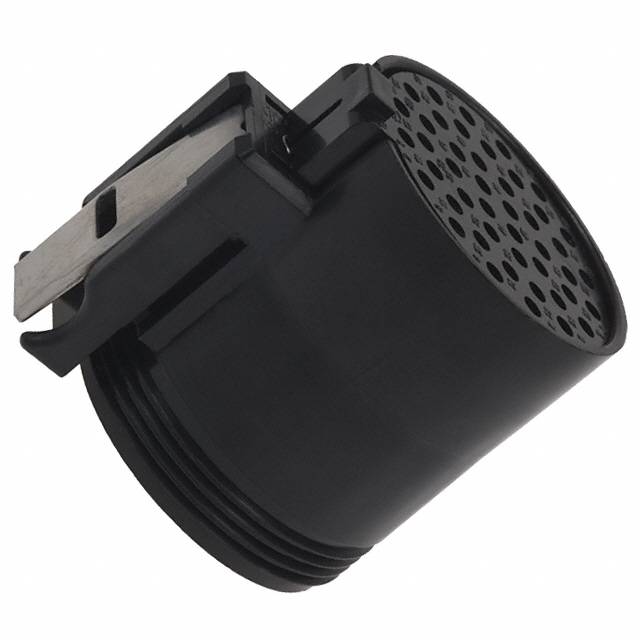

MBG46P-11

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 46POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 46POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	MBG46P-11

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Insert Material	Thermoplastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	46
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material	Thermoplastic Polyester
Shell Size - Insert	46
Shielding	Unshielded
Type	For Male Pins

Part	Contact Size	Insert Material	Shell Material	Shielding	Number of Positions	Note	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Mounting Type	Fastening Type	Shell Size - Insert	Contact Type	Type	Connector Type	Material Flammability Rating	Contact Shape
Souriau-Sunbank by Eaton MBG46P-11	16	Thermoplastic Halogen Free	Thermoplastic Polyester	Unshielded	46	Contacts Not Included	-55 °C	125 °C	Black	Free Hanging (In-Line)	Latch Lock	46	Crimp	For Male Pins	Plug Housing	UL94 V-0	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.14

General part information

46 Position Circular Connector Plug Housing Free Hanging (In-Line)
