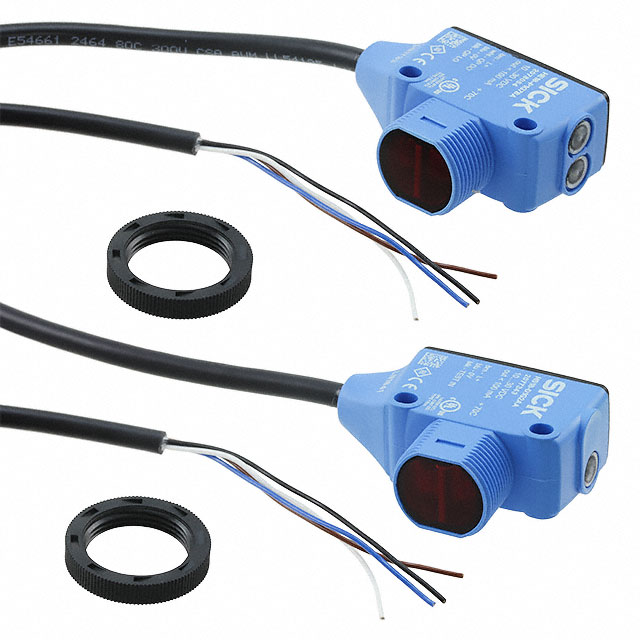

HSE18-P1G2BA

Active

SICK, Inc.

PHOTOELECTRIC SENSOR, 25M, PNP, 10-30V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

HSE18-P1G2BA

Active

SICK, Inc.

PHOTOELECTRIC SENSOR, 25M, PNP, 10-30V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HSE18-P1G2BA

Connection Method	Cable
Ingress Protection	IP67, IP69K
Light Source	Red LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	500 µs
Sensing Distance [Max]	787.402 "
Sensing Distance [Max]	2000 cm
Sensing Distance [Min]	0 mm
Sensing Distance [Min]	0 "
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

HSE18 Series

Part	Light Source	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Response Time	Ingress Protection	Sensing Distance	Sensing Distance	Connection Method	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Cable Length	Cable Length
SICK, Inc. 1083150	631 nm	Red	30 VDC	10 VDC	NPN/PNP	500 µs	IP67 IP69K	787.402 in	20 m	Connector M12	Through-Beam	70 °C	-40 °C
SICK, Inc. HSE18-B4A2BA		Red LED	30 VDC	10 VDC	NPN/PNP - Light-ON	500 µs	IP67 IP69K			4POS Connector M12	Through-Beam	70 °C	-40 °C	787.402 "	0 mm	2000 cm	0 "
SICK, Inc. 1070999	631 nm	Red	30 VDC	10 VDC	NPN/PNP	500 µs	IP67 IP69K	787.402 in	20 m	Connector M12	Through-Beam	70 °C	-40 °C
SICK, Inc. 1071015		Infrared	30 VDC	10 VDC	PNP	500 µs	IP67	787.402 in	20 m	Connector M12	Through-Beam	70 °C	-40 °C
SICK, Inc. HSE18-P3A2BA	631 nm	Red	30 VDC	10 VDC	PNP	500 µs	IP67	984.252 in	25 m	Connector M8	Through-Beam	70 °C	-40 °C
SICK, Inc. 1070987	631 nm	Red	30 VDC	10 VDC	NPN/PNP	500 µs	IP67	984.252 in	25 m	Cable	Through-Beam	70 °C	-40 °C					78.74 in	2 m
SICK, Inc. 1071744	631 nm	Red	30 VDC	10 VDC	NPN/PNP	500 µs	IP67	984.252 in	25 m	Cable	Through-Beam	70 °C	-40 °C					78.74 in	2 m
SICK, Inc. 1082363		Infrared	30 VDC	10 VDC	NPN/PNP	500 µs	IP67 IP69K	590.551 in	15 m	Connector M12	Through-Beam	70 °C	-40 °C
SICK, Inc. HSE18-P1G2BA		Red LED	30 VDC	10 VDC	PNP - Dark-ON/Light-ON - Selectable	500 µs	IP67 IP69K			Cable	Through-Beam	70 °C	-40 °C	787.402 "	0 mm	2000 cm	0 "
SICK, Inc. 1078791		Infrared	30 VDC	10 VDC	PNP	500 µs	IP67	787.402 in	20 m	Cable with Connector	Through-Beam	70 °C	-40 °C					5.906 in	150 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 146.85
Newark	Each	1	$ 231.31
		5	$ 215.11
		10	$ 208.17

Description

General part information

HSE18 Series

Through-Beam Optical Sensor 0" ~ 787.402" (0m ~ 20m) PNP - Dark-ON/Light-ON - Selectable
