AX01R090HAYBR600

Active

JAE Electronics

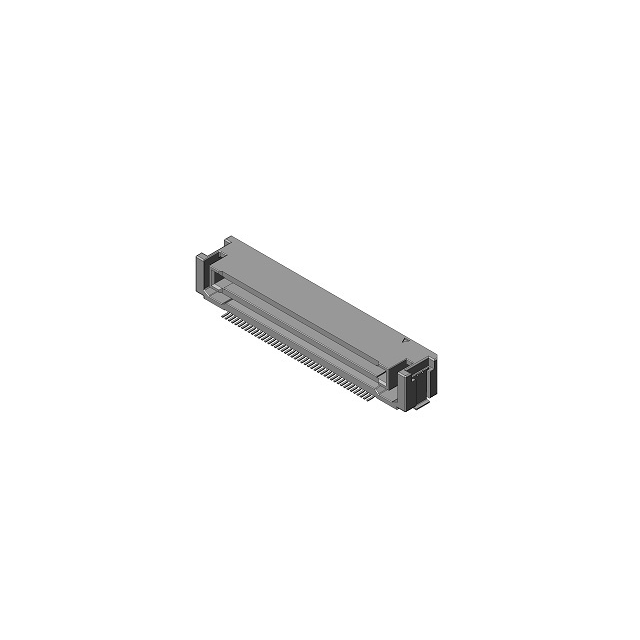

RIGID SIDE B2B CONNECTOR, RIGHT

Search across all available documentation for this part.

Active

JAE Electronics

RIGID SIDE B2B CONNECTOR, RIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	AX01R090HAYBR600

Connector Type	Outer Shroud Contacts, Plug
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	6.6 mm
Height Above Board	0.26 "
Mounting Type	Surface Mount, Right Angle
Number of Positions	90
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Features	Contact Finish	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Positions	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
JAE Electronics AX01R090VADBR500	Board Guide Solder Retention	Gold	2	0.339 in	8.6 mm	10 mm 16 mm 22 mm	90	Outer Shroud Contacts Plug	0.64 mm	0.025 in	Surface Mount	4 Áin	0.1 Ám
JAE Electronics AX01R090HAYBR600	Board Guide Solder Retention	Gold	2	0.26 "	6.6 mm		90	Outer Shroud Contacts Plug	0.64 mm	0.025 in	Surface Mount Right Angle	4 Áin	0.1 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

90 Position Connector Plug, Outer Shroud Contacts Surface Mount, Right Angle Gold
