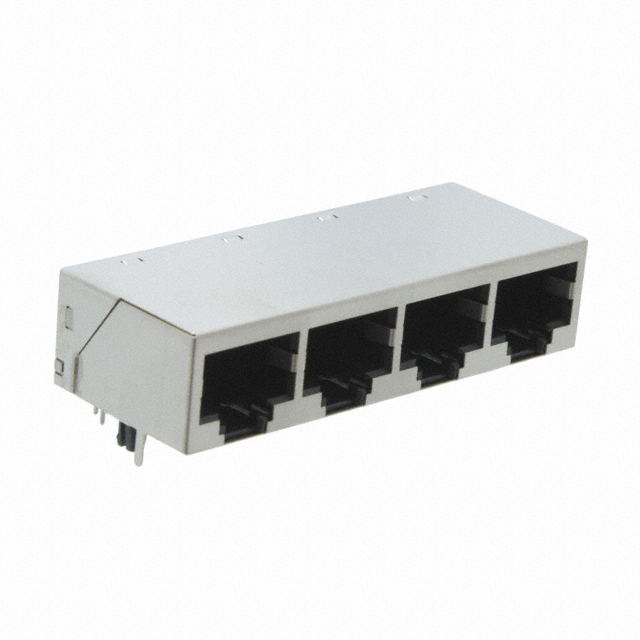

A63-142-313P161

Obsolete

EDAC Inc.

CONN JACK 4PORT 100 BASE-T PCB

Search across all available documentation for this part.

Obsolete

EDAC Inc.

CONN JACK 4PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Specification	A63-142-313P161

Applications	10/100 Base-T, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Height Above Board [z]	13.8 mm
Height Above Board [z]	0.543 in
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Ports	4
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Copper Alloy
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Shield Material	Number of Rows	Height Above Board	Height Above Board	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Number of Ports	Termination	Connector Type	Mounting Type	LED Color	Contact Material	Shielding	Contact Finish	Contact Finish Thickness	Housing Material	Tab Direction	Height Above Board [z]	Height Above Board [z]
EDAC Inc. A63-142-300N161	Copper Alloy	1	0.516 in	13.11 mm	10/100 Base-T AutoMDIX	70 °C	0 °C	90 °	4	Solder	RJ45	Through Hole	Does Not Contain LED	Phosphor Bronze	Shielded	Gold	Flash	Glass Filled Nylon 4/6 Polyamide (PA46)	Down
EDAC Inc. A63-142-313P161	Copper Alloy	1			10/100 Base-T AutoMDIX	70 °C	0 °C	90 °	4	Solder	RJ45	Through Hole	Yellow - Green	Phosphor Bronze	Shielded	Gold	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Down	13.8 mm	0.543 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
