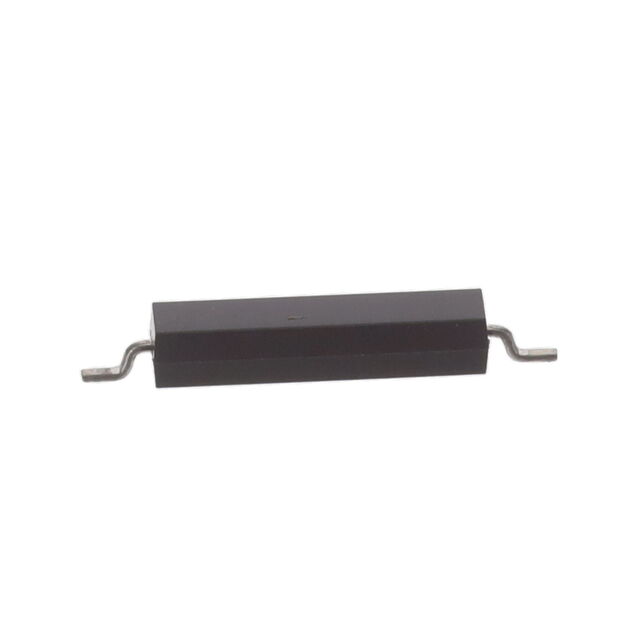

RI-69SMDM-1520-G1
ActiveComus International
SWITCH REED SPST-NO 700MA 140V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RI-69SMDM-1520-G1
ActiveComus International
SWITCH REED SPST-NO 700MA 140V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RI-69SMDM-1520-G1 |
|---|---|
| Capacitance | 0.25 pF |
| Circuit | SPST-NO |
| Current - Carry | 1 A |
| Current - Switching | 700 mA, 1 A |
| Height Above Board [z] | 2.41 mm |
| Height Above Board [z] | 0.095 in |
| Length - Overall [x] | 0.639 in |
| Length - Overall [x] | 16.23 mm |
| Mounting Type | Surface Mount |
| Operate Range [Max] | 20 AT |
| Operate Range [Min] | 15 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Rated | 20 W |
| Release Range [Max] | 18 AT |
| Release Range [Min] | 4 AT |
| Size - Body [x] | 0.452 in |
| Size - Body [x] | 11.48 mm |
| Size - Body [y] | 0.09 in |
| Size - Body [y] | 2.29 mm |
| Size - Body [z] | 0.09 " |
| Size - Body [z] | 2.29 mm |
| Termination Style | Gull Wing |
| Type | Molded Body Reed |
| Voltage - Switching AC [custom] | 140 V |
| Voltage - Switching DC | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.94 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.70 | |||
| 250 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 0.94 | ||
| 10 | $ 0.88 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.74 | |||
| 100 | $ 0.70 | |||
| 250 | $ 0.69 | |||
| Tape & Reel (TR) | 2500 | $ 0.69 | ||
Description
General part information
RI-69SM Series
Molded Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 20W 700mA (AC), 1A (DC) 140 V Surface Mount
