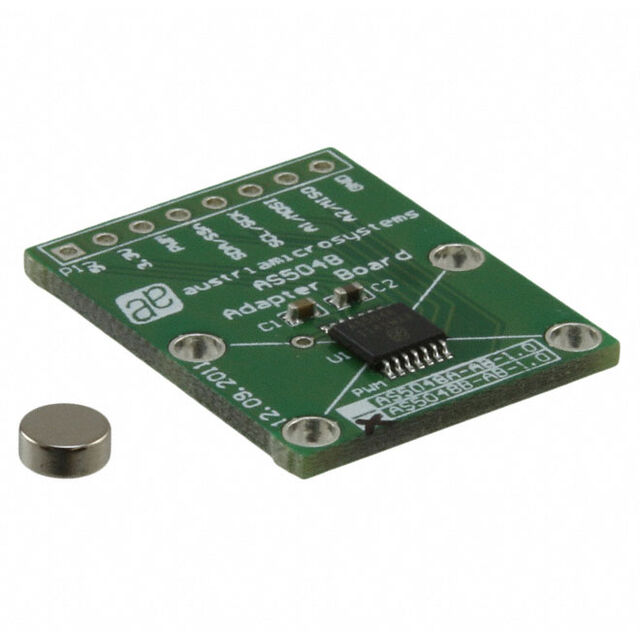

AS5048B ADAPTERBOARD

Active

ams-OSRAM USA INC.

BOARD ADAPTER AS5048

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

BOARD ADAPTER AS5048

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensor Type	Sensing Range	Supplied Contents	Interface	Contents	Output	Technology	Supplier Device Package	Actuator Type	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Mounting Type	Termination Style	Package / Case [custom]	Package / Case [custom]	Package / Case	For Measuring
ams-OSRAM USA INC. AS5048B MOTORBOARD	4.5 V	5.5 V	Magnetic Rotary Position	360 °	Accessories Board(s)	I2C
ams-OSRAM USA INC. AS5048B ADAPTERBOARD	3 V	5.5 V	Magnetic Rotary Position	360 °		I2C	Board(s)
ams-OSRAM USA INC. AS5048A-HTSP TSSOP14 LF T&RDP	3 V 4.5 V	3.6 V 5.5 V						PWM SPI	Hall Effect	14-TSSOP	External Magnet Not Included	360 °	0 °	Surface Mount	Gull Wing	0.173 "	4.4 mm	14-TSSOP	Angle
ams-OSRAM USA INC. AS5048A-HTSP-500	3 V 4.5 V	3.6 V 5.5 V						PWM SPI	Hall Effect	14-TSSOP	External Magnet Not Included	360 °	0 °	Surface Mount	Gull Wing	0.173 "	4.4 mm	14-TSSOP	Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.66

General part information

AS5048 - Magnetic, Rotary Position Sensor Evaluation Board

Technical documentation and resources

No documents available
