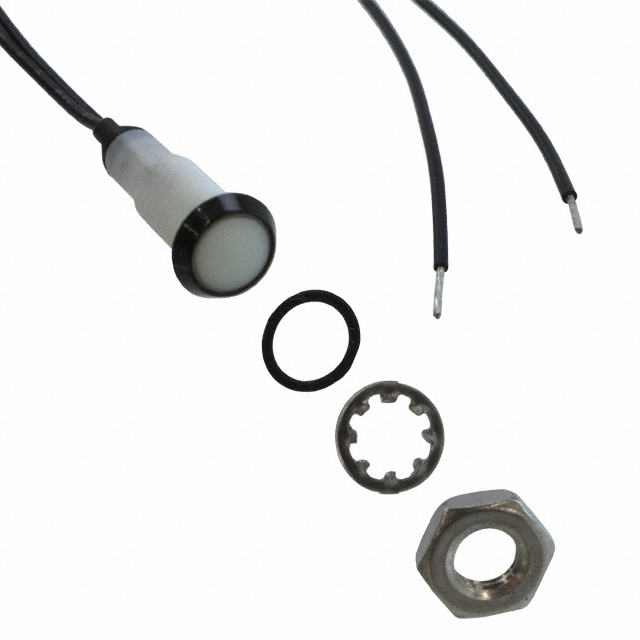

PM3-PGDW12.0

Active

Bivar Inc.

IP67 RATED SEALED PANEL MOUNT INDICATOR

Search across all available documentation for this part.

Active

Bivar Inc.

IP67 RATED SEALED PANEL MOUNT INDICATOR

Technical Specifications

Parameters and characteristics for this part

Specification	PM3-PGDW12.0

Ingress Protection	IP67
Lamp Color	Green
Lens Color	White
Lens Size [diameter]	5.9 mm
Lens Transparency	Diffused
Millicandela Rating	30 mcd
Panel Cutout Dimensions [custom]	4.83 mm
Panel Cutout Dimensions [custom]	0.19 "
Panel Cutout Shape	Round
Ratings	AC/DC
Termination Style	Wire Leads - 12" (304.80mm)
Type	LED
Viewing Angle	120 °
Voltage [Max]	48 V
Voltage [Min]	8 V
Wavelength - Peak	568 nm

Part	Ingress Protection	Millicandela Rating	Termination Style	Wavelength - Peak	Viewing Angle	Ratings	Lamp Color	Type	Voltage [Min]	Voltage [Max]	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Lens Size [diameter]	Panel Cutout Shape	Lens Color	Lens Transparency
Bivar Inc. PM3-PGDW12.0	IP67	30 mcd	Wire Leads - 12" (304.80mm)	568 nm	120 °	AC/DC	Green	LED	8 V	48 V	4.83 mm	0.19 "	5.9 mm	Round	White	Diffused

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green Diffused 120° 8V ~ 48V 20mA Wire Leads - 12" (304.80mm)
