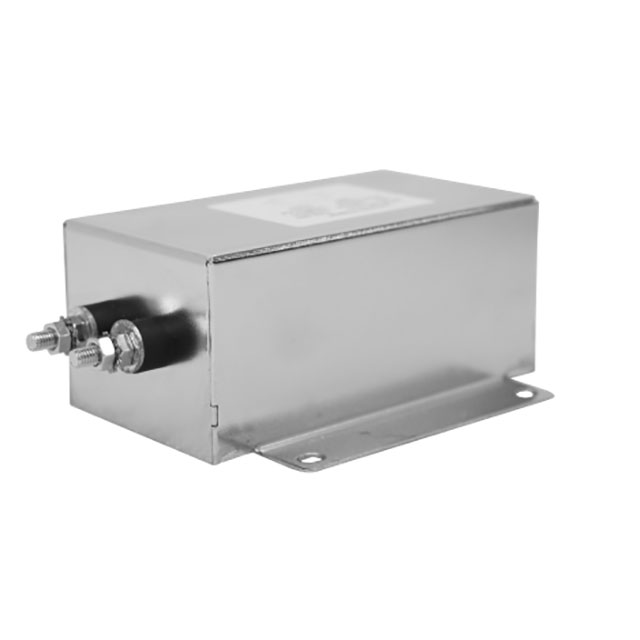

RPM7200-50-S 0.8MA/LINE

Active

Astrodyne TDI

SINGLE-PHASE FILTER BASE INSTALLATION EMC FILTERS ROHS

Search across all available documentation for this part.

Active

Astrodyne TDI

SINGLE-PHASE FILTER BASE INSTALLATION EMC FILTERS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Termination Style	Configuration	Filter Type	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC
Astrodyne TDI RPM7200-25-S	Chassis Mount	Threaded Post (M5)	Two Stage	Single Phase	25 A	60 Hz 400 Hz	50 Hz	100 °C	-40 °C	300 V
Astrodyne TDI RPM7200-50-S 0.8MA/LINE	Chassis Mount	Threaded Post (M5)	Two Stage	Single Phase	50 A	60 Hz 400 Hz	50 Hz	100 °C	-40 °C	300 V
Astrodyne TDI RPM7200-10-S	Chassis Mount	Threaded Post (M5)	Two Stage	Single Phase	10 A	60 Hz 400 Hz	50 Hz	100 °C	-40 °C	300 V
Astrodyne TDI RPM7200-30-S	Chassis Mount	Threaded Post (M5)	Two Stage	Single Phase	30 A	60 Hz 400 Hz	50 Hz	100 °C	-40 °C	300 V
Astrodyne TDI RPM7200-15-S	Chassis Mount	Threaded Post (M5)	Two Stage	Single Phase	15 A	60 Hz 400 Hz	50 Hz	100 °C	-40 °C	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1596.99

General part information

Single Phase EMC/EMI Line Filter 50 A 300V 50/60Hz, 50/400Hz Two Stage Threaded Post (M5)
