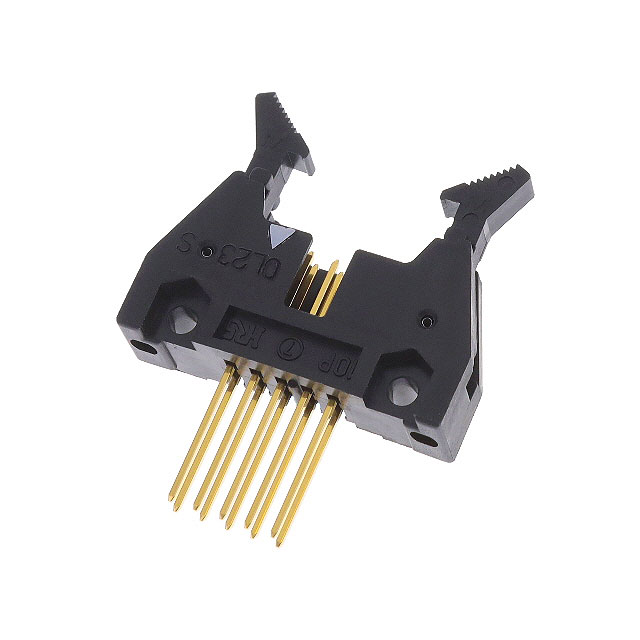

HIF3BD-10P-2.54W(63)

Active

Hirose Electric USA, Inc.

RIBBON CABLE CONNECTORS COMPLIANT WITH MIL-C-83503 STANDARD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3BD-10P-2.54W(63)

Active

Hirose Electric USA, Inc.

RIBBON CABLE CONNECTORS COMPLIANT WITH MIL-C-83503 STANDARD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3BD-10P-2.54W(63)

Connector Type	Header
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.701 "
Insulation Height	17.8 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Wire Wrap
Voltage Rating	200 V

HIF3BD Series

Part	Contact Type	Style	Insulation Color	Pitch - Mating	Pitch - Mating	Termination	Number of Rows	Current Rating (Amps)	Contact Finish - Post	Voltage Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Material	Material Flammability Rating	Features	Shrouding	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Insulation Material	Number of Positions	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Hirose Electric USA, Inc. HIF3BD-10PA-2.54DSA(63)	Male Pin	Board to Cable/Wire	Black	0.1 in	2.54 mm	Solder	2	Varies by Wire Gauge	Tin	200 V	Latch Lock/Eject Hooks	0.203 Ám	8 Áin	2.54 mm	0.1 in	Through Hole	0.13 in	3.3 mm	Brass	UL94 V-0	Keying Slot	Shrouded - 4 Wall	Square	85 °C	-55 °C	Header	All	2 çm	78.7 çin	0.701 "	17.8 mm	Polybutylene Terephthalate (PBT)	10	Gold
Hirose Electric USA, Inc. HIF3BD-10PA-2.54DSA(75)	Male Pin	Board to Cable/Wire	Black	0.1 in	2.54 mm	Solder	2		Tin	200 V	Latch Lock/Eject Hooks	0.76 Ám	30 Áin	2.54 mm	0.1 in	Through Hole	0.13 in	3.3 mm	Brass	UL94 V-0		Shrouded - 4 Wall	Square	85 °C	-55 °C	Header	All	2 çm	78.7 çin	0.701 "	17.8 mm	Polybutylene Terephthalate (PBT)	10	Gold	6 mm	0.236 in	16.7 mm	0.657 in
Hirose Electric USA, Inc. HIF3BD-10P-2.54W(63)	Male Pin	Board to Cable/Wire	Black	0.1 in	2.54 mm	Wire Wrap	2	Varies by Wire Gauge		200 V	Latch Lock/Eject Hooks			2.54 mm	0.1 in	Through Hole			Brass	UL94 V-0	Keying Slot	Shrouded - 4 Wall	Square	85 °C	-55 °C	Header	All			0.701 "	17.8 mm	Polybutylene Terephthalate (PBT)	10
Hirose Electric USA, Inc. HIF3BD-10PA-2.54DS(72)	Male Pin	Board to Cable/Wire	Black	0.1 in	2.54 mm	Solder	2			200 V	Latch Lock/Eject Hooks	0.3 µm	12 µin	2.54 mm	0.1 in	Through Hole Right Angle	0.118 in	3 mm	Brass	UL94 V-0	Mounting Flange	Shrouded - 4 Wall	Square	85 °C	-55 °C	Header	All			0.335 "	8.51 mm	Polybutylene Terephthalate (PBT)	10	Gold	6 mm	0.236 in
Hirose Electric USA, Inc. HIF3BD-10P-2.54W	Male Pin	Board to Cable/Wire	Black	0.1 in	2.54 mm	Wire Wrap	2			200 V	Latch Lock/Eject Hooks	0.203 Ám	8 Áin	2.54 mm	0.1 in	Through Hole			Brass	UL94 V-0		Shrouded - 4 Wall	Square	85 °C	-55 °C	Header	All			0.701 "	17.8 mm	Polybutylene Terephthalate (PBT)	10	Gold	6 mm	0.236 in	26.5 mm	1.043 in	0.516 in	13.1 mm
Hirose Electric USA, Inc. HIF3BD-10PA-2.54DSA(71)	Male Pin	Board to Cable/Wire	Black	0.1 in	2.54 mm	Solder	2		Tin	200 V	Latch Lock/Eject Hooks	0.203 Ám	8 Áin	2.54 mm	0.1 in	Through Hole	0.13 in	3.3 mm	Brass	UL94 V-0		Shrouded - 4 Wall	Square	85 °C	-55 °C	Header	All	2 çm	78.7 çin	0.701 "	17.8 mm	Polybutylene Terephthalate (PBT)	10	Gold	6 mm	0.236 in	16.7 mm	0.657 in
Hirose Electric USA, Inc. HIF3BD-10PA-2.54WB(63)	Male Pin	Board to Cable/Wire	Black	0.1 in	2.54 mm	Solder	2	Varies by Wire Gauge	Tin	200 V	Latch Lock/Eject Hooks	0.203 Ám	8 Áin	2.54 mm	0.1 in	Through Hole Right Angle	0.118 in	3 mm	Brass	UL94 V-0		Shrouded - 4 Wall	Square	85 °C	-55 °C	Header	All	2 çm	78.7 çin	0.335 "	8.51 mm	Polybutylene Terephthalate (PBT)	10	Gold
Hirose Electric USA, Inc. HIF3BD-10PA-2.54DS(63)	Male Pin	Board to Cable/Wire	Black	0.1 in	2.54 mm	Solder	2	Varies by Wire Gauge	Tin	200 V	Latch Lock/Eject Hooks	0.203 Ám	8 Áin	2.54 mm	0.1 in	Through Hole Right Angle	0.118 in	3 mm	Brass	UL94 V-0		Shrouded - 4 Wall	Square	85 °C	-55 °C	Header	All	2 çm	78.7 çin	0.335 "	8.51 mm	Polybutylene Terephthalate (PBT)	10	Gold
Hirose Electric USA, Inc. HIF3BD-10P-2.54W(88)	Male Pin	Board to Cable/Wire	Black	0.1 in	2.54 mm	Wire Wrap	2			200 V	Latch Lock/Eject Hooks	0.203 Ám	8 Áin	2.54 mm	0.1 in	Through Hole			Brass	UL94 V-0		Shrouded - 4 Wall	Square	85 °C	-55 °C	Header	All			0.701 "	17.8 mm	Polybutylene Terephthalate (PBT)	10	Gold	6 mm	0.236 in	26.5 mm	1.043 in	0.516 in	13.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.72
		10	$ 4.29
		100	$ 3.78
		500	$ 3.21
		1000	$ 2.74
Newark	Each	1	$ 4.62
		500	$ 4.08

Description

General part information

HIF3BD Series

Connector Header Through Hole 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources
