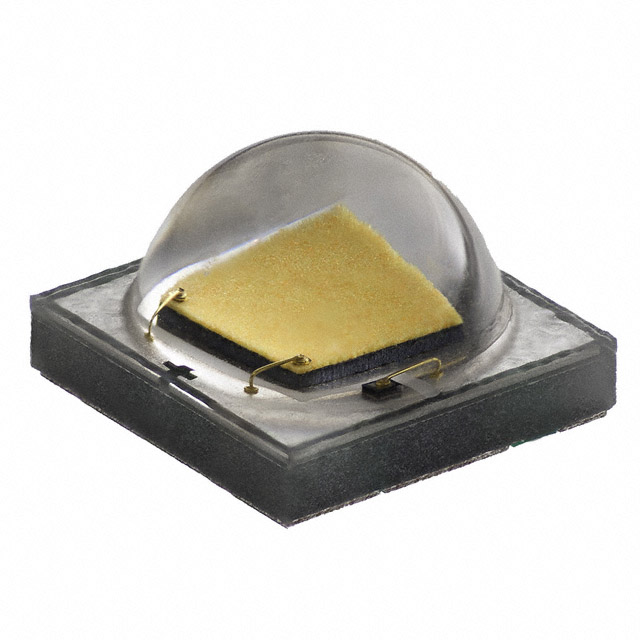

XPGBWT-L1-0000-00DE3

Active

Cree LED

LED XLAMP COOL WHITE 5000K 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XPGBWT-L1-0000-00DE3

Active

Cree LED

LED XLAMP COOL WHITE 5000K 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XPGBWT-L1-0000-00DE3

CCT (K)	5000 K
Color	Cool, White
Current - Max [Max]	1.5 A
Current - Test	350 mA
Flux @ 85°C, Current - Test	111 lm
Flux @ 85°C, Current - Test [Max]	114 lm
Flux @ 85°C, Current - Test [Min]	107 lm
Height - Seated (Max) [Max] [z]	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "
Lumens/Watt @ Current - Test	117 lm/W
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.45 mm
Size / Dimension [x]	0.136 in
Size / Dimension [y]	0.136 in
Size / Dimension [y]	3.45 mm
Thermal Resistance of Package [custom]	4 °C/W
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	2.72 V

XPGBWT Series

...

Part	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Thermal Resistance of Package [diameter]	Flux @ 85°C, Current - Test	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Max [Max]	Supplier Device Package	CRI (Color Rendering Index)	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	CCT (K)	Thermal Resistance of Package [custom]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Cree LED XPGBWT-BE-0000-00K8E	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA	3 °C/W	160 lm	181 lm/W	171 lm	2.7 V	Surface Mount	2 A	1414	70	White	2.39 mm	0.094 "	125 °
Cree LED XPGBWT-L1-0000-00DE3	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA		111 lm	117 lm/W		2.72 V	Surface Mount	1.5 A			Cool White	2.39 mm	0.094 "	115 °	5000 K	4 °C/W	114 lm	107 lm
Cree LED XPGBWT-L1-0000-00G53	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA			142 lm/W		2.72 V	Surface Mount	1.5 A		70	Cool White	2.39 mm	0.094 "	115 °	6000 K	4 °C/W	139 lm	130 lm
Cree LED XPGBWT-01-0000-00KF7	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA		160 lm	168 lm/W		2.72 V	Surface Mount	1.5 A	1414	70	Warm White	2.39 mm	0.094 "	120 °	3250 K	4 °C/W
Cree LED XPGBWT-01-R250-00HE7	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA		144 lm	152 lm/W		2.72 V	Surface Mount	1.5 A		70	Warm White	2.39 mm	0.094 "	115 °		4 °C/W	148 lm	139 lm
Cree LED XPGBWT-HE-0000-00LDV	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA	3 °C/W	168 lm	178 lm/W		2.7 V	Surface Mount	2 A	1414	80	Cool White	2.39 mm	0.094 "	125 °	6000 K
Cree LED XPGBWT-UE-0000-00E8E	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA	3 °C/W	118 lm	132 lm/W	125 lm	2.7 V	Surface Mount	2 A	1414	90	White	2.39 mm	0.094 "	125 °			122 lm	114 lm
Cree LED XPGBWT-L1-0000-00GZ8	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA			142 lm/W		2.72 V	Surface Mount	1.5 A	1414	80	Warm White	2.39 mm	0.094 "	120 °	2700 K	4 °C/W	139 lm	130 lm
Cree LED XPGBWT-HE-0000-00K3E	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA	3 °C/W	160 lm	181 lm/W	171 lm	2.7 V	Surface Mount	2 A	1414	80	White	2.39 mm	0.094 "	125 °
Cree LED XPGBWT-L1-0000-00EE8	3535 Metric	1414	3.45 mm	0.136 in	0.136 in	3.45 mm	350 mA		118 lm			2.72 V	Surface Mount	1.5 A		80	Warm White	2.39 mm	0.094 "	115 °	2700 K	4 °C/W	122 lm	114 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.73

Description

General part information

XPGBWT Series

LED Lighting XLamp® XP-G2 White, Cool 5000K 2.72V 350mA 115° 1414 (3535 Metric)
