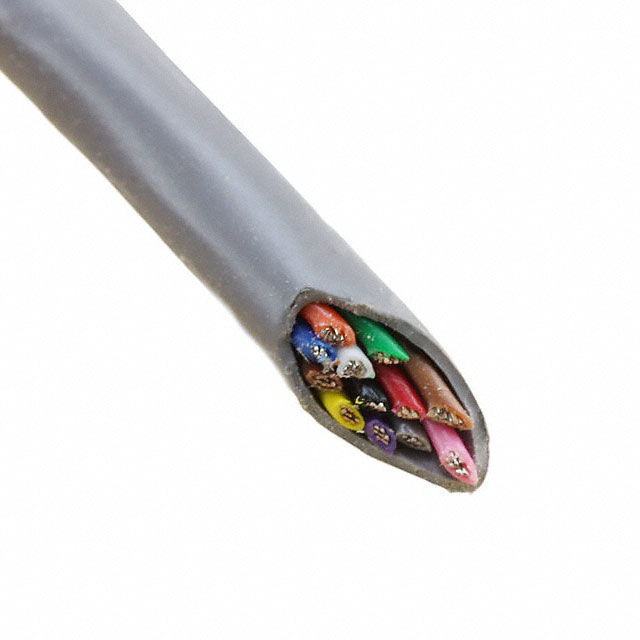

1219/12C SL001

Active

ALPHA WIRE

CABLE 12COND 24AWG SHLD SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 12COND 24AWG SHLD SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1219/12C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.251 in
Jacket (Insulation) Diameter [diameter]	6.38 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

Part	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Material	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Cable Type	Length	Length	Shield Type	Voltage	Shield Material	Conductor Insulation	Features	Number of Conductors	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
ALPHA WIRE 1219/12C SL001	Communication Control	-20 C	80 C	Slate	Copper Tinned	100 %	32 AWG	7	Poly-Vinyl Chloride (PVC)	Multi-Conductor	1000 ft	304.8 m	Foil	300 V	Aluminum	Poly-Vinyl Chloride (PVC)	Drain Wire	12	24 AWG	0.251 in	6.38 mm
ALPHA WIRE 1219/12C SL005	Communication Control	-20 C	80 C	Slate	Copper Tinned	100 %	32 AWG	7	Poly-Vinyl Chloride (PVC)	Multi-Conductor			Foil	300 V	Aluminum	Poly-Vinyl Chloride (PVC)	Drain Wire	12	24 AWG	0.251 in	6.38 mm	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1848.97

General part information

12 Conductor Multi-Conductor Cable Slate 24 AWG Foil 1000.0' (304.8m)
