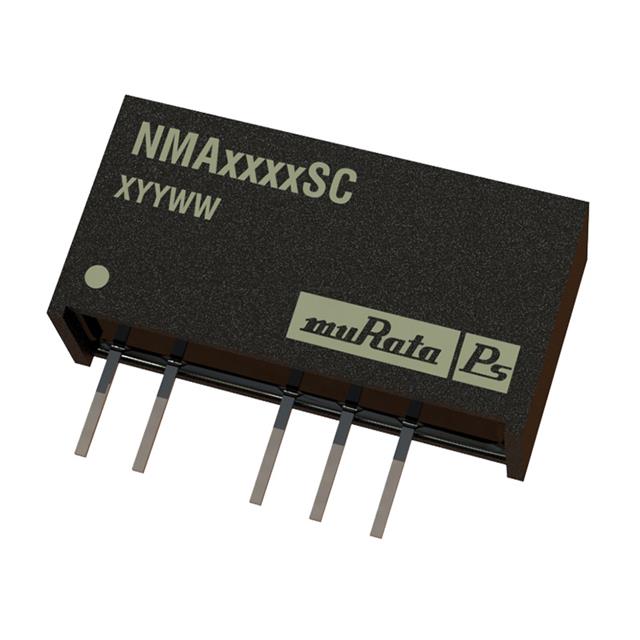

NMA1205SC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMA1205SC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NMA1205SC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 100 mA |
| Current - Output (Max) | 100 mA |
| Efficiency | 69 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [x] | 19.6 mm |
| Size / Dimension [y] | 6.1 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 9.9 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.08 | |
| 5 | $ 5.05 | |||
| 10 | $ 5.02 | |||
| 25 | $ 4.96 | |||
| 50 | $ 4.84 | |||
| 100 | $ 4.60 | |||
| 250 | $ 4.30 | |||
| 500 | $ 4.01 | |||
| 1000 | $ 3.76 | |||
Description
General part information
NMA12 Series
Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 10.8V - 13.2V Input
