3380-4SG-330

Active

Conxall/Switchcraft

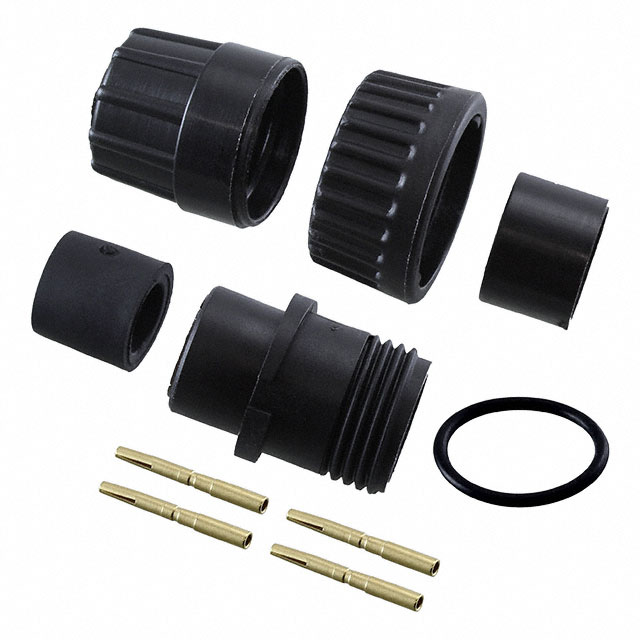

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3380-4SG-330

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3380-4SG-330

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.32 in
Cable Opening [Max] [diameter]	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm
Cable Opening [Min] [diameter]	0.3 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

3380-4S Series

Part	Connector Type	Mounting Type	Ingress Protection	Shielding	Contact Material	Contact Finish - Mating	Fastening Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Features	Backshell Material, Plating	Number of Positions	Orientation	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Voltage Rating	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3380-4SG-328	Female Sockets Plug	Free Hanging (In-Line)	Weathertight	Unshielded	Brass	Gold	Bayonet Lock	7.37 mm	7.11 mm	0.29 in	0.28 in	Backshell	Nylon Polyamide (PA)	4	Keyed	Crimp	-40 °C	115 °C	Black	600 V	Plastic
Conxall/Switchcraft 3380-4SG-330	Female Sockets Plug	Free Hanging (In-Line)	Weathertight	Unshielded	Brass	Gold	Bayonet Lock		7.62 mm	0.32 in	0.3 in	Backshell	Nylon Polyamide (PA)	4	Keyed	Crimp	-40 °C	115 °C	Black	600 V	Plastic	8.13 mm
Conxall/Switchcraft 3380-4SG-515	Female Sockets Plug	Free Hanging (In-Line)	Weathertight	Unshielded	Brass	Gold	Bayonet Lock					Backshell Cable Clamp	Nylon Polyamide (PA)	4	Keyed	Crimp	-40 °C	115 °C	Black	600 V	Plastic		0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3380-4SG-521	Female Sockets Plug	Free Hanging (In-Line)	Weathertight	Unshielded	Brass	Gold	Bayonet Lock	5.84 mm	5.33 mm	0.23 in	0.21 in	Backshell Cable Clamp	Nylon Polyamide (PA)	4	Keyed	Crimp	-40 °C	115 °C	Black	600 V	Plastic
Conxall/Switchcraft 3380-4SG-530	Female Sockets Plug	Free Hanging (In-Line)	Weathertight	Unshielded	Brass	Gold	Bayonet Lock		7.62 mm	0.32 in	0.3 in	Backshell Cable Clamp	Nylon Polyamide (PA)	4	Keyed	Crimp	-40 °C	115 °C	Black	600 V	Plastic	8.13 mm
Conxall/Switchcraft 3380-4SG-321	Female Sockets Plug	Free Hanging (In-Line)	Weathertight	Unshielded	Brass	Gold	Bayonet Lock	5.84 mm	5.33 mm	0.23 in	0.21 in	Backshell	Nylon Polyamide (PA)	4	Keyed	Crimp	-40 °C	115 °C	Black	600 V	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.53
		10	$ 6.78
		25	$ 6.38
		50	$ 6.22
		100	$ 6.06
		300	$ 5.76

Description

General part information

3380-4S Series

4 Position Circular Connector Plug, Female Sockets Crimp
