Q-080080008009i

Active

Amphenol Custom Cable

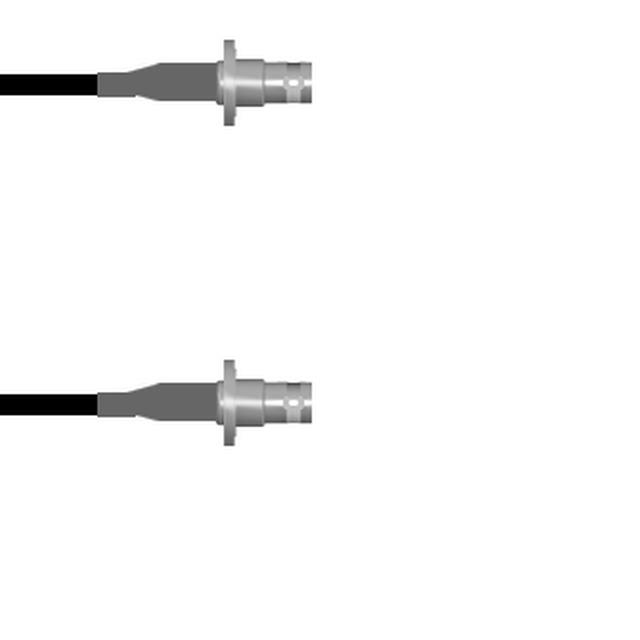

CBL ASSY BNC JACK TO JACK 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-080080008009i

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO JACK 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-080080008009i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-080080 Series

Part	1st Connector Mounting Type	Color	Length	Length	Overall Impedance	Cable Type	Features	2nd Contact Gender	1st Connector	1st Connector Mounting Feature	Style	2nd Connector	2nd Connector Mounting Feature	Frequency - Max [Max]	2nd Connector Mounting Type	1st Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-080080008036i	Panel Mount	Black	91.44 cm	36 in	50 Ohms	RG-58	Shielded	Female	BNC Jack	Bulkhead - Front Side Nut	BNC to BNC	BNC Jack	Bulkhead - Front Side Nut	4 GHz	Panel Mount	Female
Amphenol Custom Cable Q-080080008084i	Panel Mount	Black	2.1 m	84 in	50 Ohms	RG-58	Shielded	Female	BNC Jack	Bulkhead - Front Side Nut	BNC to BNC	BNC Jack	Bulkhead - Front Side Nut	4 GHz	Panel Mount	Female	7 ft
Amphenol Custom Cable Q-0800800081.5M	Panel Mount	Black	1.5 m	59.1 in	50 Ohms	RG-58	Shielded	Female	BNC Jack	Bulkhead - Front Side Nut	BNC to BNC	BNC Jack	Bulkhead - Front Side Nut	4 GHz	Panel Mount	Female	4.9 ft
Amphenol Custom Cable Q-080080008048i	Panel Mount	Black	1200 mm	48 in	50 Ohms	RG-58	Shielded	Female	BNC Jack	Bulkhead - Front Side Nut	BNC to BNC	BNC Jack	Bulkhead - Front Side Nut	4 GHz	Panel Mount	Female	4 ft
Amphenol Custom Cable Q-080080008.25M	Panel Mount	Black			50 Ohms	RG-58	Shielded	Female	BNC Jack	Bulkhead - Front Side Nut	BNC to BNC	BNC Jack	Bulkhead - Front Side Nut	4 GHz	Panel Mount	Female		9.843 "	250 mm
Amphenol Custom Cable Q-080080008002M	Panel Mount	Black	2 m	78.7 in	50 Ohms	RG-58	Shielded	Female	BNC Jack	Bulkhead - Front Side Nut	BNC to BNC	BNC Jack	Bulkhead - Front Side Nut	4 GHz	Panel Mount	Female	6.6 ft
Amphenol Custom Cable Q-080080008009i	Panel Mount	Black	228.6 mm	9 "	50 Ohms	RG-58	Shielded	Female	BNC Jack	Bulkhead - Front Side Nut	BNC to BNC	BNC Jack	Bulkhead - Front Side Nut	4 GHz	Panel Mount	Female
Amphenol Custom Cable Q-080080008.75M	Panel Mount	Black	750 mm	29.53 "	50 Ohms	RG-58	Shielded	Female	BNC Jack	Bulkhead - Front Side Nut	BNC to BNC	BNC Jack	Bulkhead - Front Side Nut	4 GHz	Panel Mount	Female
Amphenol Custom Cable Q-0800800080.5M	Panel Mount	Black	50 cm	19.69 "	50 Ohms	RG-58	Shielded	Female	BNC Jack	Bulkhead - Front Side Nut	BNC to BNC	BNC Jack	Bulkhead - Front Side Nut	4 GHz	Panel Mount	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 80.63
		25	$ 79.06
		50	$ 77.49
		100	$ 75.92
		250	$ 74.35

Description

General part information

Q-080080 Series

Cable Assembly Coaxial BNC to BNC RG-58 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
