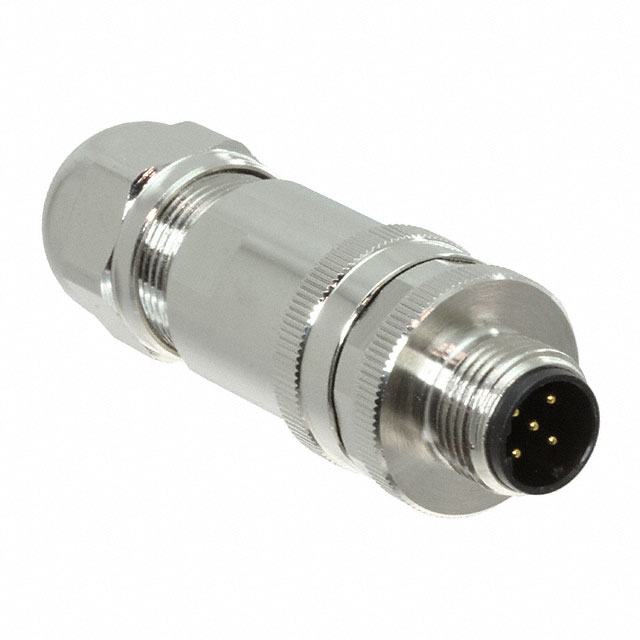

T4111511051-000

Active

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 5POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM12 connection application specification Datasheet

T4111511051-000

Active

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 5POS GOLD SCREW

Deep-Dive with AI

DocumentsM12 connection application specification Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T4111511051-000

Applications	Industrial
Backshell Material, Plating	Nickel, Brass
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Brass
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Screw
Voltage Rating	60 VDC

T41115 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Applications	Shell Finish	Contact Finish - Mating	Connector Type	Primary Material	Termination	Voltage Rating	Shell Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shielding	Shell Size - Insert	Orientation	Current Rating (Amps)	Features	Color	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Insert Material	Backshell Material, Plating	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions
TE Connectivity Raychem Cable Protection T4111512031-000	3 µin	0.076 µm	Free Hanging (In-Line)	Industrial	Nickel	Gold	Male Pins Receptacle	Metal	Screw	250 VDC	Brass	Brass	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	M12-3	D	4 A	Backshell	Silver	8 mm	6 mm	0.315 in	0.236 in	Nylon Polyamide (PA)	Brass Nickel
TE Connectivity Raychem Cable Protection T4111512032-000	80 µin	2.03 µm	Free Hanging (In-Line)	Industrial	Nickel	Silver	Male Pins Receptacle	Metal	Screw	250 VDC	Brass	Brass	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	M12-3	D	4 A	Backshell	Silver	8 mm	6 mm	0.315 in	0.236 in	Nylon Polyamide (PA)	Brass Nickel
TE Connectivity Raychem Cable Protection T4111501032-000	80 µin	2.03 µm	Free Hanging (In-Line)	Industrial	Nickel	Silver	Male Pins Receptacle	Metal	Screw	250 VDC	Brass	Brass	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Unshielded	M12-3	D	4 A	Backshell	Black Silver					Nylon Polyamide (PA)	Glass Filled Polybutylene Terephthalate (PBT)	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4111502031-000	3 µin	0.076 µm	Free Hanging (In-Line)	Industrial	Nickel	Gold	Male Pins Receptacle	Metal	Screw	250 VDC	Brass	Zinc Alloy	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Unshielded	M12-3	D	4 A	Backshell	Black Silver	8 mm	6 mm	0.315 in	0.236 in	Nylon Polyamide (PA)	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity Raychem Cable Protection T4111511042-000	80 µin	2.03 µm	Free Hanging (In-Line)	Industrial	Nickel	Silver	Male Pins Receptacle	Metal	Screw	250 VDC	Brass	Brass	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	M12-4	D	4 A	Backshell	Silver					Nylon Polyamide (PA)	Brass Nickel	4 mm 6 mm	0.157 in 0.236 in	4
TE Connectivity Raychem Cable Protection T4111511052-000	80 µin	2.03 µm	Free Hanging (In-Line)	Industrial	Nickel	Silver	Male Pins Receptacle	Metal	Screw	60 VDC	Brass	Brass	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	M12-5	D	4 A	Backshell	Silver					Nylon Polyamide (PA)	Brass Nickel	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4111511051-000	3 µin	0.076 µm	Free Hanging (In-Line)	Industrial	Nickel	Gold	Male Pins Receptacle	Metal	Screw	60 VDC	Brass	Brass	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	M12-5	D	4 A	Backshell	Silver					Nylon Polyamide (PA)	Brass Nickel	4 mm 6 mm	0.157 in 0.236 in
TE Connectivity Raychem Cable Protection T4111512021-000	3 µin	0.076 µm	Free Hanging (In-Line)	Industrial	Nickel	Gold	Male Pins Receptacle	Metal	Screw	250 VDC	Brass	Zinc Alloy	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	M12-2	D	4 A	Backshell	Silver	8 mm	6 mm	0.315 in	0.236 in	Nylon Polyamide (PA)	Brass Nickel			2
TE Connectivity Raychem Cable Protection T4111512041-000	3 µin	0.076 µm	Free Hanging (In-Line)	Industrial	Nickel	Gold	Male Pins Receptacle	Metal	Screw	250 VDC	Brass	Zinc Alloy	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	M12-4	D	4 A	Backshell	Silver	8 mm	6 mm	0.315 in	0.236 in	Nylon Polyamide (PA)	Brass Nickel			4
TE Connectivity Raychem Cable Protection T4111511041-000	3 µin	0.076 µm	Free Hanging (In-Line)	Industrial	Nickel	Gold	Male Pins Receptacle	Metal	Screw	250 VDC	Brass	Zinc Alloy	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Shielded	M12-4	D	4 A	Backshell	Silver					Nylon Polyamide (PA)	Brass Nickel	4 mm 6 mm	0.157 in 0.236 in	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.84
		10	$ 10.71
		100	$ 9.29
		1000	$ 7.93

Description

General part information

T41115 Series

5 Position Circular Connector Receptacle, Male Pins Screw
