TF414T5G

Obsolete

ON Semiconductor

N-CHANNEL JFET, 40V, 50 TO 130ΜA, 0.11MS, SOT-883

Search across all available documentation for this part.

Obsolete

ON Semiconductor

N-CHANNEL JFET, 40V, 50 TO 130ΜA, 0.11MS, SOT-883

Technical Specifications

Parameters and characteristics for this part

Specification	TF414T5G

Current - Drain (Idss) @ Vds (Vgs=0)	50 µA, 10 V
Current Drain (Id) - Max [Max]	1 mA
Drain to Source Voltage (Vdss)	40 V
FET Type	N-Channel
Input Capacitance (Ciss) (Max) @ Vds	0.7 pF
Mounting Type	Surface Mount
Operating Temperature	150 °C

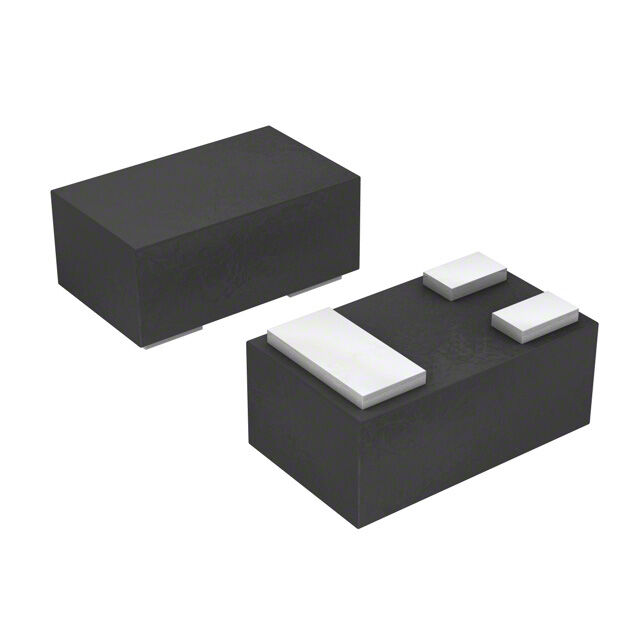

Package / Case	3-XFDFN
Power - Max [Max]	100 mW
Supplier Device Package	SOT-883, XDFN3
Supplier Device Package [x]	1
Supplier Device Package [y]	0.6
Voltage - Breakdown (V(BR)GSS)	40 V
Voltage - Cutoff (VGS off) @ Id	4 V

N-Channel JFET, 40V, 50 to 130µA, 0.11mS, SOT-883

Part	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Drain to Source Voltage (Vdss)	Current - Drain (Idss) @ Vds (Vgs=0)	Current Drain (Id) - Max [Max]	FET Type	Operating Temperature	Power - Max [Max]	Voltage - Breakdown (V(BR)GSS)	Voltage - Cutoff (VGS off) @ Id	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type
ON Semiconductor TF414T5G	SOT-883 XDFN3	1	0.6	40 V	10 V 50 µA	1 mA	N-Channel	150 °C	100 mW	40 V	4 V	3-XFDFN	0.7 pF	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TF414 is a Junction FET 40V 1mA Nch USFP(1.0mm×0.6mm×0.4mm) for Impedance Converter and Infrared Sensor Applications.
