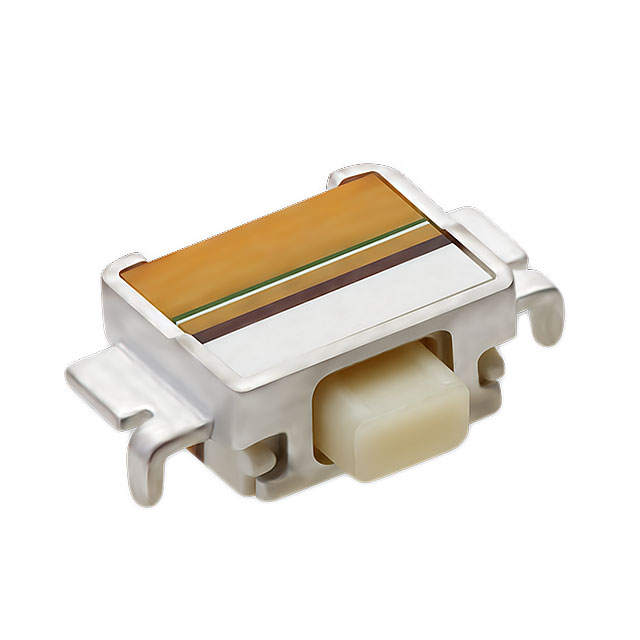

LS12P2E-T
ObsoleteCitizen Finedevice Co Ltd
SWITCH TACTILE SPST-NO 0.02A 12V
Deep-Dive with AI
Search across all available documentation for this part.
LS12P2E-T
ObsoleteCitizen Finedevice Co Ltd
SWITCH TACTILE SPST-NO 0.02A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LS12P2E-T |
|---|---|
| Actuator Length, Right Angle | 1.35 mm |
| Actuator Orientation | Side Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 12 VDC, 0.02 A |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Outline [x] | 5.35 mm |
| Outline [y] | 2.85 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LS12P2 Series
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Documents
Technical documentation and resources
No documents available
