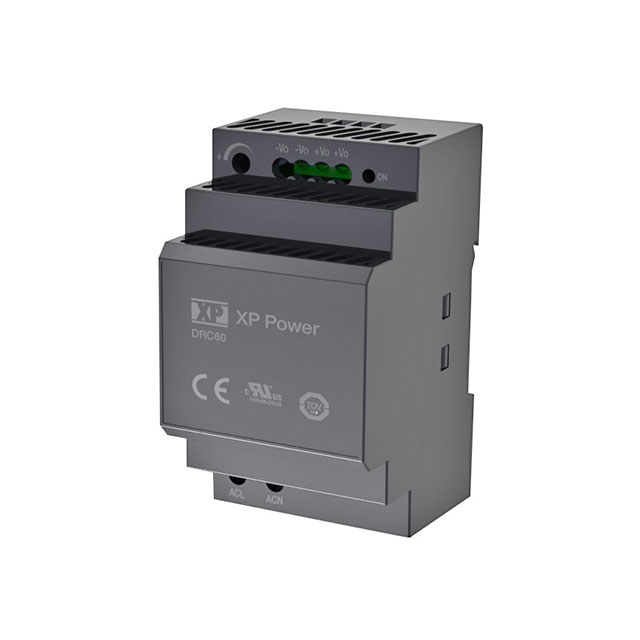

DRC60US05

XP POWER

AC/DC DIN RAIL SUPPLY 5V 33W

Search across all available documentation for this part.

XP POWER

AC/DC DIN RAIL SUPPLY 5V 33W

Technical Specifications

Parameters and characteristics for this part

Specification	DRC60US05

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	TUV, UL
Current - Output (Max) [Max]	6.5 A
Efficiency	84 %
Features	Adjustable Output, Universal Input
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	33 W
Size / Dimension [x]	58 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	2.05 in
Size / Dimension [y]	52 mm
Size / Dimension [z]	3.65 in
Size / Dimension [z]	92.7 mm
Standard Number	62368-1
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

Part	Standard Number	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1	Minimum Load Required	Input Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Voltage - Isolation	Number of Outputs	Efficiency	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)
XP POWER DRC60US05	62368-1	6.5 A	85 VAC	264 VAC	5 V		AC	58 mm	3.65 in	92.7 mm	2.28 in	2.05 in	52 mm	ITE (Commercial)	4000 V	1	84 %	TUV UL	70 °C	-30 °C	Adjustable Output Universal Input	33 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	6	$ 23.22

General part information

AC/DC DIN RAIL SUPPLY 5V 33W
