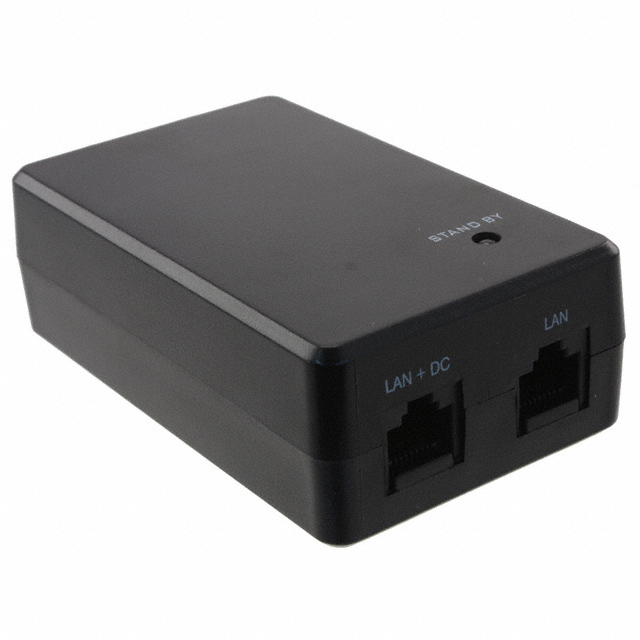

PW180KB4800F01
ActiveSL POWER / Advanced Energy
POE INJECTOR 15.4W 48V DESKTOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PW180KB4800F01
ActiveSL POWER / Advanced Energy
POE INJECTOR 15.4W 48V DESKTOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PW180KB4800F01 |
|---|---|
| Approval Agency | cULus, EN, CE, IEC |
| Compliance | IEEE802.3af |
| Current - Output | 350 mA |
| Data Rate [Max] | 100 Mbps |
| Data Rate [Min] | 10 Mbps |
| Features | OCP, SCP |
| Input Connector | IEC 320-C14 |
| Mounting Type | Desktop |
| Note | AC Power Cord Sold Separately |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 15.4 W |
| Size / Dimension [x] | 101 mm |
| Size / Dimension [x] | 3.98 in |
| Size / Dimension [y] | 61.5 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [z] | 34.2 mm |
| Size / Dimension [z] | 1.35 " |
| Type | Midspan Injector |
| Voltage - Input [Max] | 250 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 48 V |
| Weight | 170.1 g |
| Weight | 0.375 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 27.60 | |
| 10 | $ 25.42 | |||
| 25 | $ 23.96 | |||
| 50 | $ 23.24 | |||
| 100 | $ 21.79 | |||
| 250 | $ 19.97 | |||
| 500 | $ 19.32 | |||
Description
General part information
PW180KB4800 Series
48V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100 Mbps Data Rate
