M24308/4-5F

Active

Cinch Connectivity Solutions Trompeter

D SUB CONNECTOR, DB50, 50 CONTACTS, PLUG, CRIMP, DD, M24308 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Technical Data Sheet EN

M24308/4-5F

Active

Cinch Connectivity Solutions Trompeter

D SUB CONNECTOR, DB50, 50 CONTACTS, PLUG, CRIMP, DD, M24308 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/4-5F

Color	Green
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Diallyl Phthalate (DAP), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Steel
Shell Size, Connector Layout	5
Termination	Crimp

M24308/4 Series

Part	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Shell Material, Finish	Number of Rows	Current Rating (Amps)	Dielectric Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Contact Finish	Contact Material	Shell Size, Connector Layout	Number of Positions	Color	Connector Style	Mounting Type	Note	Mating Cycles	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Cinch Connectivity Solutions Trompeter M24308/4-9Z	Male Pins Plug	Tools Included	50 µin	1.27 µm	Signal	Steel Yellow Chromate Plated Zinc	2	5 A	Diallyl Phthalate (DAP) Glass Filled	Crimp	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Gold	Brass	4 (DC C)	37	Green	D-Sub
Cinch Connectivity Solutions Trompeter M24308/4-262Z	Plug for Male Contacts				Signal	Steel Yellow Chromate Plated Zinc	2		Diallyl Phthalate (DAP) Glass Filled		125 °C	-65 ░C	Housing/Shell (Unthreaded)			4 (DC C)	37	Green	D-Sub	Free Hanging (In-Line)	Contacts Not Included	500
Cinch Connectivity Solutions Trompeter M24308/4-263Z	Plug for Male Contacts				Signal	Steel Yellow Chromate Plated Zinc	3		Diallyl Phthalate (DAP) Glass Filled		125 °C	-65 ░C	Housing/Shell (Unthreaded)				50	Green	D-Sub	Free Hanging (In-Line)	Contacts Not Included	500	5
Cinch Connectivity Solutions Trompeter M24308/4-7F	Male Pins Plug	Tools Included	50 µin	1.27 µm	Signal	Steel Yellow Chromate Plated Cadmium	2	5 A	Diallyl Phthalate (DAP) Glass Filled	Crimp	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Gold	Brass		15	Green	D-Sub				2
Cinch Connectivity Solutions Trompeter M24308/4-2F	Male Pins Plug		50 µin	1.27 µm	Signal	Steel Yellow Chromate Plated Cadmium	2	5 A	Diallyl Phthalate (DAP) Glass Filled	Crimp	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Gold	Brass		15	Green	D-Sub				2
Cinch Connectivity Solutions Trompeter M24308/4-259Z	Plug for Male Contacts				Signal	Steel Yellow Chromate Plated Zinc	2		Thermoplastic		125 °C	-55 °C	Housing/Shell (Unthreaded)				9	Black	D-Sub	Free Hanging (In-Line)	Contacts Not Included	500		DE E	1
Cinch Connectivity Solutions Trompeter M24308/4-5Z	Male Pins Plug		50 µin	1.27 µm	Signal	Steel Yellow Chromate Plated Zinc	3	5 A	Diallyl Phthalate (DAP) Glass Filled	Crimp	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Gold	Brass		50	Green	D-Sub				5
Cinch Connectivity Solutions Trompeter M24308/4-259F	Plug for Male Contacts				Signal	Steel Yellow Chromate Plated Cadmium	2		Diallyl Phthalate (DAP) Glass Filled		125 °C	-65 ░C	Housing/Shell (Unthreaded)				9	Green	D-Sub	Free Hanging (In-Line)	Contacts Not Included	500		DE E	1
Cinch Connectivity Solutions Trompeter M24308/4-1F	Male Pins Plug		50 µin	1.27 µm	Signal	Steel Yellow Chromate Plated Cadmium	2	5 A	Diallyl Phthalate (DAP) Glass Filled	Crimp	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Gold	Brass		9	Green	D-Sub					DE E	1
Cinch Connectivity Solutions Trompeter M24308/4-5F	Male Pins Plug		50 µin	1.27 µm	Signal	Steel Yellow Chromate Plated Cadmium	3	5 A	Diallyl Phthalate (DAP) Glass Filled	Crimp	125 °C	-65 ░C	Housing/Shell (Unthreaded)	Gold	Brass		50	Green	D-Sub				5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 65.76
		10	$ 60.34
		25	$ 58.02
		50	$ 56.09
		100	$ 53.00
	Bulk	1	$ 84.36
		10	$ 67.59
		25	$ 61.11
		50	$ 55.74
		100	$ 52.67
	Retail Package	1	$ 102.60
		100	$ 77.40
		500	$ 61.56
		1000	$ 58.64
Newark	Each	1	$ 139.61
		1	$ 80.05
		10	$ 71.24
		10	$ 128.17
		25	$ 68.94
		25	$ 119.02
		50	$ 64.73
		50	$ 114.44
		100	$ 60.90

Description

General part information

M24308/4 Series

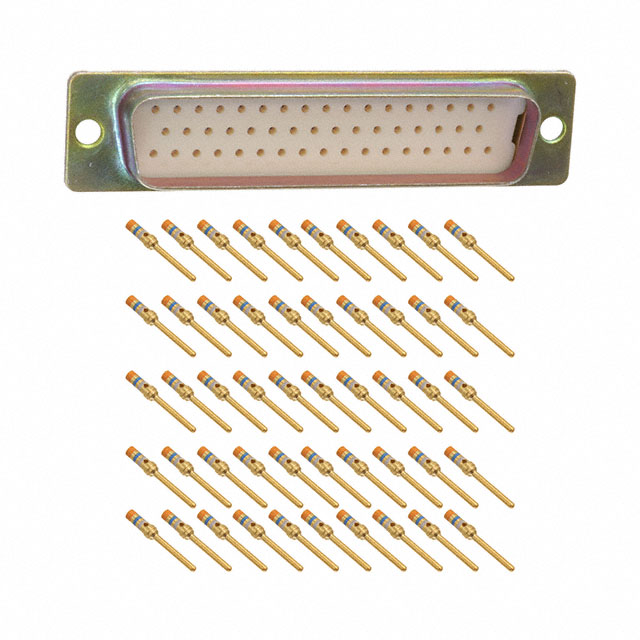

The M24308/4-5F is a 50-way crimp D-sub Plug with mounting holes. This M24308 series connector has green glass-filled diallyl phthalate insulator, cadmium-plated steel shell and 50μinch gold-plated contacts.
