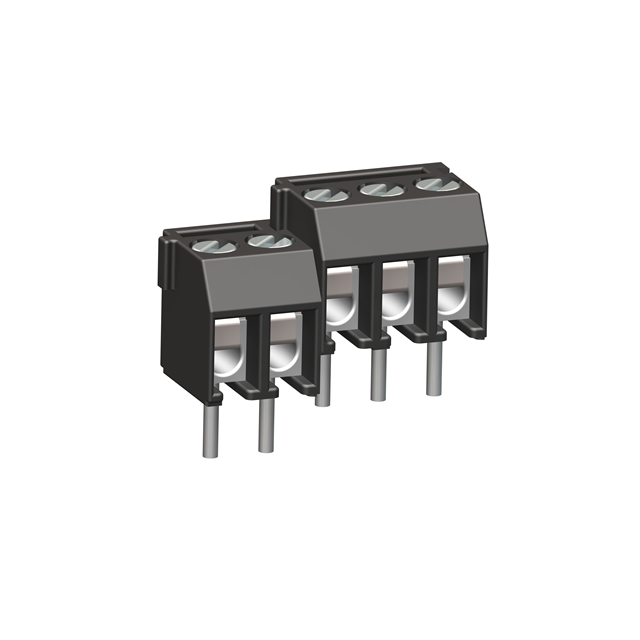

930-T-DS/03
ActiveWECO Electrical Connectors Inc.
TERMINAL BLOCK CONNECTOR PCB SCR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
930-T-DS/03
ActiveWECO Electrical Connectors Inc.
TERMINAL BLOCK CONNECTOR PCB SCR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 930-T-DS/03 |
|---|---|
| Clamp Material - Plating | Nickel Plated |
| Color | Gray |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 10 A |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 3 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M2 |
| Torque - Screw | 0.23 Nm |
| Torque - Screw | 2 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.16 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.12 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.95 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.85 | |||
| 1000 | $ 0.83 | |||
| 5000 | $ 0.79 | |||
Description
General part information
930-T-DS Series
3 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
